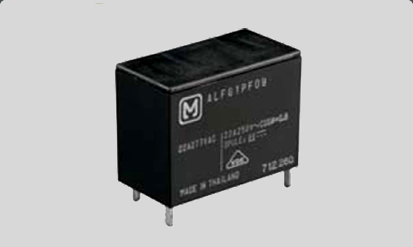

New LF-G Power Relay with 1.5 mm Contact Gap
|
 |
|
|
|
Panasonic Electric Works introduces the LF-G power relay with 1.5mm contact gap. The LF-G relay is ideal for inverter applications in photovoltaic power generation systems and UPS (Uninterruptible Power Systems). Features include 2.5kV surge breakdown voltage between contacts (EN61810-1 certified) and compliance with European photovoltaic standard VDE0126.
LF-G offers 1 Form A contact arrangement with a high capacity rating of 22A, 250 VAC and low coil holding voltage with a 280mW equivalent power consumption. High insulation resistance is another feature: creepage distance between contact and coil terminal is a minimum of 8mm, clearance distance a minimum of 6.5mm and 6kV surge breakdown voltage.
Additional applications include home appliances and office equipment. |
|
|
|
|
|
| |
Check it Out  |
|
 |
|
 |
| |
|
| |
 |
|
 |
| |
 |
|
CIT Relay & Switch announces RoHS, UL Listed, Process Sealed BSP Series Sub-Miniature Pushbutton
|
|
|
|
|
|
Minneapolis, Minnesota – CIT Relay & Switch announces the availability of the BSP Series subminiature momentary pushbutton switch. Offering numerous terminals including snap-in mounting options, the BSP provides design engineers a versatile, momentary switch for use in wide variety of applications. Available in both Single Pole and Double Pole, the BSP offers a choice in of silver-plated, gold-plated or |
|
gold over silver-plated contacts.
Specifications: Electrical rating is 3A @ 120VAC and 28VDC, 1A @ 250VAC. Typical electrical life is 30,000 cycles. Contact Resistance is <20mΩ maximum initially at 2~4VDC, 100mA. Dielectric Strength is 1000Vrms minimum with Insulation Resistance of >1000MΩ minimum. Operating and Storage Temperature is -40°C to 85°C, sealed to IP67 standards. SPDT or DPST configuration... |
|
|
|
|
|
|
|
| |
