Connector for micro SD™ Card Header Type SCHD Series





Features

Improved set design flexibility through the introduction of an increased variety of products.



  • A comfortable click feeling at insertion.
  • A card-guide structure to prevent cards from touching circuit boards and connector terminals during insertion.
  • Alps unique terminal shape achieved a superior contact stability.
  • A wide variety of product lines.
  • The mounting pattern is compatible with the hinge cover type.



Applications

  • Mobile phones, Personal Digital Assistants, digital cameras, and portable audio devices, etc.



Typical Specifications



Structure Specifications
Applicable media microSD™ Card
Dimensions (W×D×H) 14.6×13.2×1.6mm
Mounting method Surface mounting type
Mounting system Standard mount
Media ejection structure Manual insertion / removal
Operating temperature range -20°C to +70°C
Voltage proof 500V AC 1 min.
Insulation resistance (Initial) 1,000MO min.
Contact resistance (Initial) 100mO max.
Insertion and removal cycle 10,000 cycles

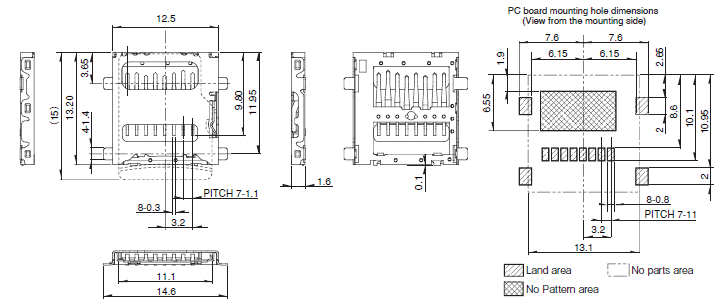

Dimensions (Click to Enlarge)

New Part Numbers

Document Download
SCHA1A0101 Small Memory Card Connectors • Connector for TransFlashTM Card (Push-push Ejection Type) SCHA Series • Applicable Media: TransFlashTM Card • Media Ejection Structure: Push-push type • Mounting Methods: Surface mounting type • Mounting System: Standard
SCHA1B0100 Connector for micro SD • Media ejection structure: Push-push type • Mounting system: Standard mount • Features: With switch
SCHA2B0300 Connector for micro SD • Media ejection structure: Push-push type • Mounting system: Reverse mount • Features: With switch
SCHB1A0201 Connector for micro SD • Media ejection structure: Manual insertion / removal • Mounting system: Standard mount • Features: Hinge cover type
SCHD1A0101 Connector for micro SD • Media ejection structure: Manual insertion / removal • Mounting system: Standard mount • Features: Header type
SCHC1A0200 Connector for micro SD • Media ejection structure: Manual insertion / removal • Mounting system: - • Features: Adapter
