Well-suited for applications demanding higher
power, PS6R power supplies are designed for
any industrial or machine application where
reliable DC power (even in multiple voltages)
is required. This makes them ideal for machine
tools, hydraulic presses, waste water treatment
facilities and more!

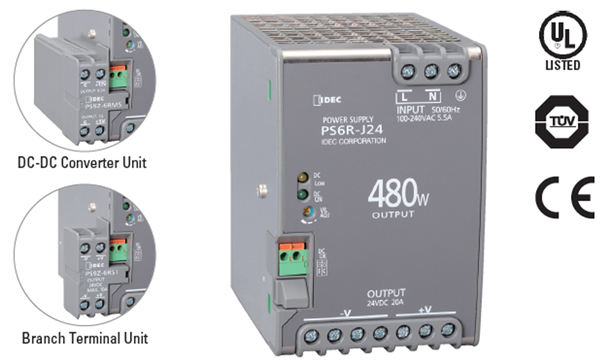

Our new PS6R power supply provides customers
a steady power source with a 93%
efficiency level, great for customers concerned
with energy consumption. With an output rating
of 20A, this power supply has our highest
output power rating and is parallel-capable for
increased power.
With compact housing taking up less space
than most 240W power supplies in the market,
these power supplies are ideal for applications
where high power is required but panel space
is limited. A unique feature, the built-in expansion
slot, means customers can add 5V and
12V outputs with a simple plug-in module, or
add extra + and - slots with a branch terminal
module. PS6R power supplies preserve valuable
panel space while providing flexibility for
customers!
Another unique feature is a built-in indicator
alarm contact (NPN transistor) that closes,
letting the user know that the output voltage
has fallen below 80%. PS6R conforms to all
global standards, is UL listed, TUV approved
and CE marked to comply with both EMC and
LVD directives.
PS6R power supplies offer high efficiency and
expansion options enabling increased flexibility,
all in a compact package. More models to be
added soon!
Highlights
- 93% efficiency level
- Expandable with 5V and 12V DC-DC converters
- Branch terminal module expands number of + & - slots
- Built-in Output alarm contact
- Output ratings: 20A, 480W
- Adjustable range: 22.5 – 29.5V DC
- Input voltage 100 – 240V AC/ 110 ~ 350VDC
- Frequency rating: 50/60Hz
- Parallel-capable
- Overcurrent and overvoltage protection
- Compact housing
- Screw terminal connection, finger-safe (IP20)
