ALPS Introduces the EC12D Series



Features

Improved set design flexibility through the introduction of an increased variety of products.



  • Incremental type insulated shaft encoder with push switch.
  • External shape designed to reduce the projected area
  • Facilities layout of illuminated functions.



Applications

  • Controls for image and sound devices Controls for audio mixers and electronic instruments













Typical Specifications



Item Specifications
Size 12.5mm x 11.7mm
Rating 10mA DC 5V
Detent torque 5 +/- 3 mN*m, 10 +/- 5 mN*m
Resolution 15 pulses
Detent points 30
Rotation life 30,000 cycles

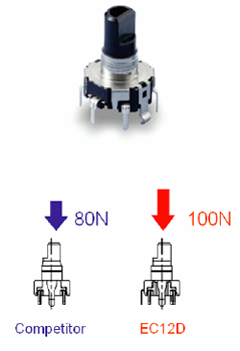

Push-pull strength 100N
Operating temp -40 to 85 deg. C



Part Number
Detent Torque
Number of Detents
Resolution
Operating Direction
Switch Travel
Shaft Length
EC12D1524401
5 +/- 3
30
15
Vertical
0.5mm
17.5mm
EC12D1564401
10 +/- 5
