Combine Type Connector (for Memory Stick Duo™, miniSD™ Card) SCJD Series



Features

Applicable for 2 types of card, increasing set design flexibility.



  • cable for Memory Stick Duo™ and miniSD™ Card.
  • Push-push card ejection mechanism for both card types.
  • Achieving a high level of coplanarity through insert molding.



Applications

  • Mobile phones, digital cameras, digital camcorders, personal digital assistants, printers, AV equipment, etc.



Typical Specifications



Structure Specifications
Applicable card Memory Stick Duo™, miniSD™ Card
Dimensions (W×D×H) 23.6 × 31.3 × 2.65mm
Mounting type Surface mounting type
Mounting style Standard mount
Card ejection structure Push-push type



Performance Specifications
Operating temperature range -10°C to +60°C
Voltage proof 250V AC 1min.
Insulation resistance (Initial) 1,000MO min.
Contact resistance (Initial) Connector contacts 100mO max.
Contact resistance (Initial) Detection switch 500mO max.
Insertion and removal cycle 10,000 cycles

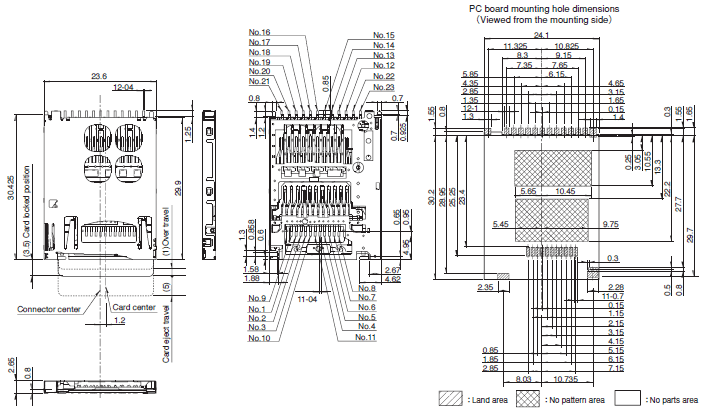

Dimensions (Click to Enlarge)
