China's 3G, RF Module for TD-SCDMA UMLC1-111B
Variations limited and stable performance achieved by utilizing simulation technology and matching IC optimization.
Items |
min. |
typ. |
max. |
|
Operating temperature |
-30°C |
- |
+85°C |
|
Frequency |
2010MHz min. |
- |
2025MHz max. |
|
Supply voltage PA |
3.2V |
3.5V |
4.2V |
|
Supply voltage RF |
2.75V |
2.85V |
2.95V |
|
Transmission output |
26.5dBm/BW |
- |
- |
|
Power leaked to adjacent channel (ACLR 1.6MHz offset) |
- |
-38dBc |
-34dBc |
|
Reception output NF |
- |
4.7dB |
- |
|

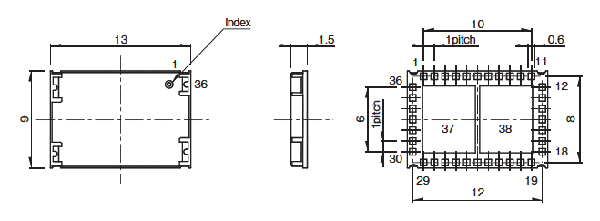

Dimensions (W×D×H) |
13.0×9.0×1.5mm |
|||

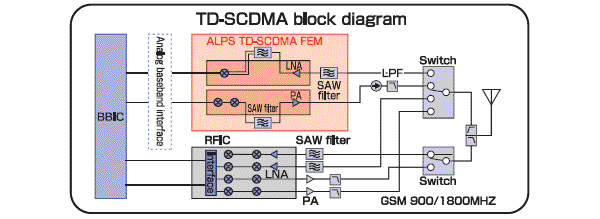

Example of circuit configuration
| Document | File Type | File Size | Download |
| Datasheet | 327 KB |  |
 |
 |
 |
 |
