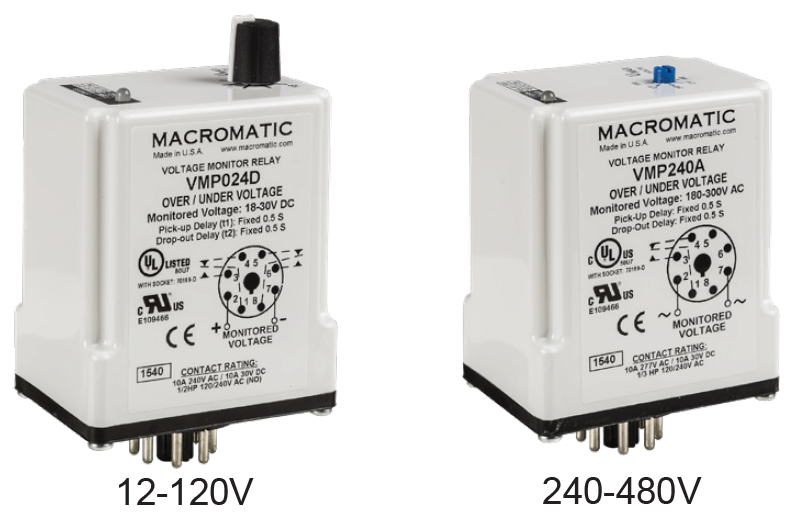

Over/Under Voltage Relays provide protection to equipment where an over or under voltage condition is potentially damaging. They are designed to energize when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.

OVER/UNDER VOLTAGE | ADJUSTABLE TIME DELAY & DROP-OUT 12-480V | VAKP Series

Over/Under Voltage Relays provide protection to equipment where an over or under voltage condition is potentially damaging. They are designed to energize when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.

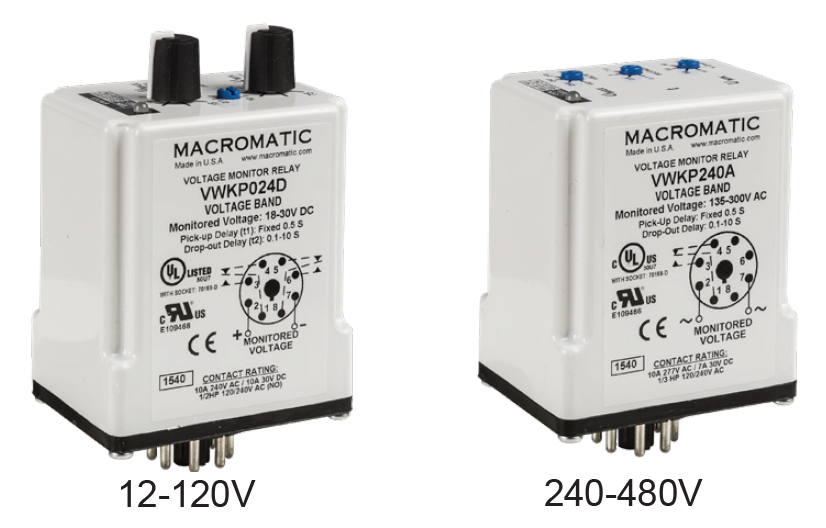

VOLTAGE BAND (WINDOW) 12-480V | VWKP Series

Voltage Band Relays provide protection to equipment that is required to operate within an upper and lower voltage limit. As long as the operating voltage remains within an Over and Under Voltage range, the internal relay stays energized. If the operating voltage falls outside this range, the relay will drop-out.

VOLTAGE BAND (WINDOW) 24-240V | VWKE Series

Provides protection to equipment that is required to operate within an upper and lower AC single phase or DC voltage limit. As long as the monitored voltage remains between the Over Voltage (Umax) and Under Voltage (Umin) settings, the internal relay stays energized. If the monitored voltage falls outside this range, the relay will drop-out. The Umax dial sets the upper trip setting per the Overvoltage range of the product. The Umin dial sets the lower trip setting at 30-95% of the upper...

Downloads

Document File Type File Size Download
Voltage Monitor Rrelay Catalog PDF 3.6 MB
