Ordering Informatio

Sensing Method Connecting method Sensing distance Output type Model Minimum packing unit
(Unit: pcs)
Reflective Connector 11±8mm Photo IC EE-SPY415 1

Note: Order in multiples of minimum packing unit.

Ratings / Characteristics

Absolute Maximum Ratings (Ta = 25ºC)

Item Symbol Rated value Unit Remarks
Supply voltage VCC 7 VDC --
Output voltage VOUT 16 V Output transistor voltage
(Between Collector and Emitter)
Output current IOUT 30 mA Output transistor collector current
Output dissipationn *1 POUT 250 mW Output transistor collector power dissipation
Ambient temperature *2 Topr -10 to 60 °C --
Storage temperature Tsol -40 to 85 °C --

Note: 1. Output power dissipation (POUT) must be derated in accordance with Figure 1 in the Engineering Data Section.
2. To be used in applications where no freezing or condensation occurs.

Electrical and Optical Characteristics (Ta = 25ºC)

Item Symbol Value Unit Condition
MIN. TYP. MAX.
Consumption Current ICC -- -- 25 mA With/without object
Low-level output voltage VOL -- 0.4 0.4 V IOUT = 20 mA with object
High-level output voltage VOH (VCC by 0.9) -- -- V VOUT = VCC,RL=1KΩ Without object
Response Delay time * tPLH,tPHL -- -- 1 ms VOUT = VCC, RL = 1 kΩ

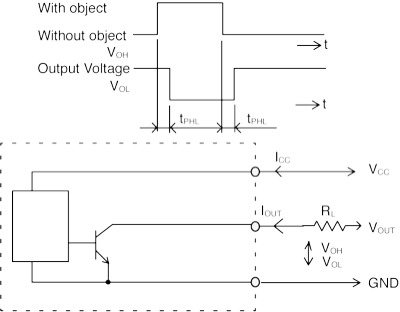

* Response delay time is defined as below.

Exterior Specifications

Connecting method Weight (g) Material
Case
Connecter 3.25 PPE

Ratings

Item Value
Detectable distance * 11±2mm(Black paper and OHP paper) 11±8mm(White paper)
Non-detectable distance* 20mm (Black sponge) 45mm (White paper)
Usable ambient illumination 3,000 Lx max. at Receiver surface (incandescent lamp, fluorescent lamp)
Vibration Mechanical durability 10 to 150 Hz, Peak acceleration 10 G (100 m/s) 1.5 mm double amplitude for 2 hours each in X, Y, Z directions
Shock Mechanical durability 300 m/s2 (approximately 30 G) in X, Y, Z directions, respectively 3 times
Resistance to noise (normal mode) Faulty operation 200 Vp, pulse width: 1 μs
Break 350 Vp, pulse width: 1 μs
Resistance to noise (common mode) Faulty operation 250 Vp, pulse width: 1 μs
Break 500 Vp, pulse width: 1 μs
Terminal strength Tensile strength 2 kgf (20 N), for 5 seconds
Flexure strength 1 kgf (10 N), 1 time, for 5 seconds

* If a background object is present, the object should be located at the specified non-detectable distance or further from the receiver surface.
White paper: reflection factor of 90%
Black paper: reflection factor of 16%
