Panasonic - Motion & Light Sensors

Panasonic offers a series of integrated motion sensors, enabling safety and energy conservation applications. Many packages include a built-in amplifier for simple, compact designs, and are used in lighting and HVAC control, ambient light detection and security applications.

Passive Infrared (PIR) Motion Sensors with built-in lens in a miniature package for occupancy or presence detection
Cadmium-free Light Sensors to control lighting levels relative to ambient
Area Reflective Sensors

NaPiOn Passive Infrared Sensors

Detection Lens	Image	Type	Lens Color	Part NO.	Rated Operating Voltage	Ambient Temperature
Standard		Standard	Black	AMN11111	3.0-6.0 VDC	-20 to +60°C -4 to 140°F
		Standard	White	AMN11112	3.0-6.0 VDC
		Low Current Consumption	Black	AMN41121	2.2-3.0 VDC
		Low Current Consumption	White	AMN41122	2.2-3.0 VDC
Slight Motion		Standard	Black	AMN12111	3.0-6.0 VDC
		Standard	White	AMN12112	3.0-6.0 VDC
		Low Current Consumption	Black	AMN42121	2.2-3.0 VDC
		Low Current Consumption	White	AMN42122	2.2-3.0 VDC
Spot		Standard	Black	AMN13111	3.0-6.0 VDC
		Standard	White	AMN13112	3.0-6.0 VDC
		Low Current Consumption	Black	AMN43121	2.2-3.0 VDC
		Low Current Consumption	White	AMN43122	2.2-3.0 VDC
10 Meter		Standard	Black	AMN14111	3.0-6.0 VDC
		Standard	White	AMN14112	3.0-6.0 VDC
		Low Current Consumption	Black	AMN44121	2.2-3.0 VDC
		Low Current Consumption	White	AMN44122	2.2-3.0 VDC

Detection Lens	Image	Lens Color	Part NO.	Rated Operating Voltage	Ambient Temperature
Standard		Black	AMN21111	4.5-5.5 VDC	-20 to +60°C -4 to 140°F
Standard		White	AMN21112
Slight Motion		Black	AMN22111
Slight Motion		White	AMN22112
Spot		Black	AMN23111
Spot		White	AMN23112
10 Meter		Black	AMN24111
10 Meter		White	AMN24112

Visible Light Sensors

The NaPiCa is a Photo IC device that is optimized to detect wavelengths that are visible to the human eye (380nm to 780nm). Cd-free and Pd-free, the NaPiCa comes with a built-in photocurrent amplifier in a Miniature SMD package - 1.0mm L x 3.2mm W x 1.0mm H. Typical applications include vending machines, LCD displays and security systems.

NaPiCa Visible Light Sensors

Output Rating	Part Number
Output Rating	Picked from the 1/4-pin side	Picked from the 2/3-pin side
Surface Mount Package (SMD)	AMS104Y	AMS104W

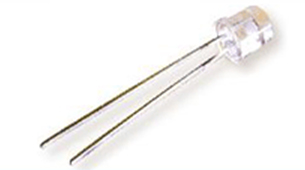

Through Hole Package	AMS302T

Area Reflective Motion Sensor

Ultra-sensitive, stand-alone MA motion sensor is unaffected by ambient temperatures and is available in a variety of detection ranges. Typical applications include automatic doors, ATM's, self check-outs, exercise equipment, factory automation equipment.

Area Reflective Sensors

Product Type	Detection Method	Type		Characteristics
Short Type (H Type)		Built-in oscillation circuit type	Detection distance 5 to 200cm, 1.969 to 78.74 inch	The sensors are ready for immediate use by simply connecting to a DC power supply Can be used with a number of different supply voltages 1) 5 VDC type 2) Free-range type (6.5 - 27 VDC)
Middle Type (H Type)

Long Type (H Type)		External trigger type	Detection distance 5 to 200cm, 1.969 to 78.74 inch	These sensors can be used in adjacent positions and can save energy Can be used with a number of different supply voltages 1) 5 VDC type 2) Free-range type (6.5 - 27 VDC)
Long Type (V Type)		External trigger type	Detection distance 5 to 200cm, 1.969 to 78.74 inch
