Compatible with 10mA to 4.5A Water-proof Type Switch SDDH Series



IP68 water resistant, enabling submerged operation



  • Compatible with broad rating range from weak to medium currents. (10mA to 4.5A)
  • Snap action contact mechanism provides clear-cut clicking feel.
  • Terminal tab (#187) pitch is 9.2mm, improving insulation.

Applications

  • Motorbike stop lamp on/off switching
  • Power switching/detection applications in sports mobiles (e.g. buggies and personal watercraft), ship-related applications, or other applications requiring water resistance
  • Power switching/detection applications in agricultural, industrial or other equipment requiring high water resistance.

Specifications

Items
Specifications
Dimensions(WxDxH)
28.5 x 9.0 x 24.3mm
Rating max. (Lamp: 27W x 2pcs.)
12V DC 4.5A
Rating min. (Resistive load)
12V DC 10mA
Operating force
4.6N max.
Operating life
100,000cycles
Circuit configuration
SPST (Normally closed)
Water resistance standard
IP68

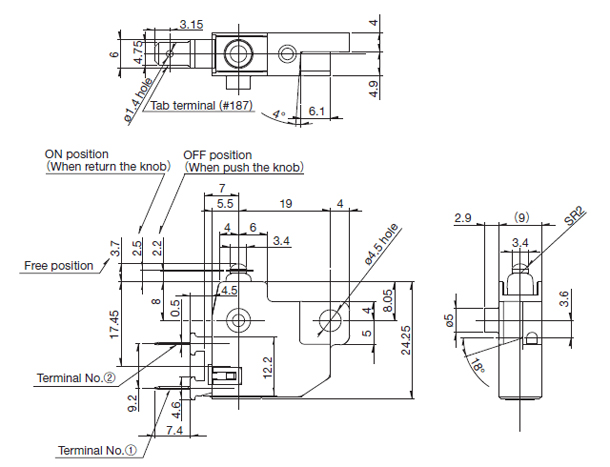

Dimensions

Documents and Downloads

Document File Type File Size Download
Datasheet PDF 134 KB
