American Zettler offers a variety of micro-ISO, mini-ISO, and PCB mounted relays for many automotive electronic applications. Sockets are available for plug-in types.



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods
	AZ21501P	50A	SPST/SPDT	UL/CUR	2500 Vrms dielectric	PCB mount
	AZ2501	50A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	Heavy Tabs
	AZ2501L	60A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB mount
	AZ2505	120A	SPST	-	4000 Vrms dielectric	Quick Connect
	AZ576P	20A	1 Form A, B, C	UL/CUR	5000 Vrms dielectric	PCB mount
	AZ7621P	16A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB mount
	AZ762P	20A	SPST/SPDT	UL/CUR	4400 Vrms dielectric	PCB mount
	AZ830P	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P1	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P2	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ8461	2A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ8462	2A	DPDT	UL/CUR	1500 Vrms dielectric	PCB mount

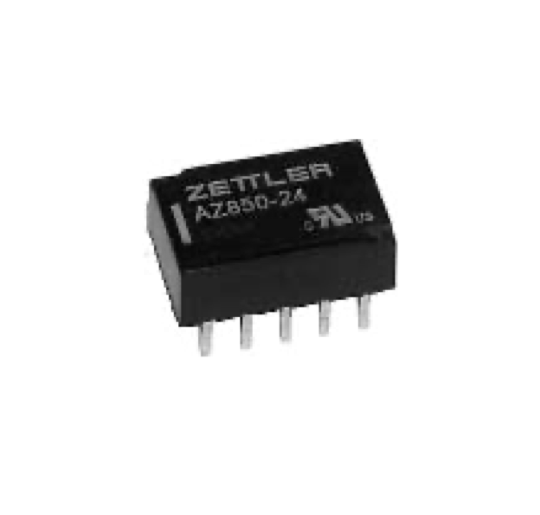

	AZ850	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ850P1	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ850P2	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ852	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ8521	2A	DPDT	UL/CUR	1800 Vrms dielectric	PCB mount
	AZ852P	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852PS	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852PS1	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount

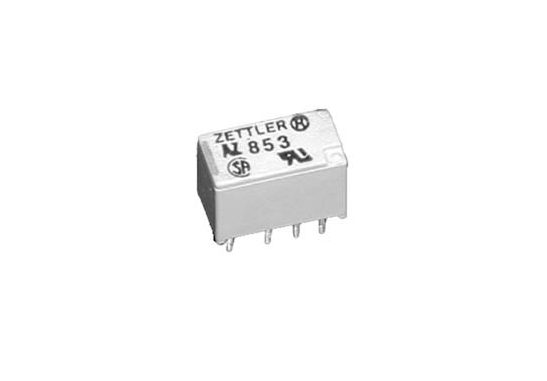

	AZ853	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount

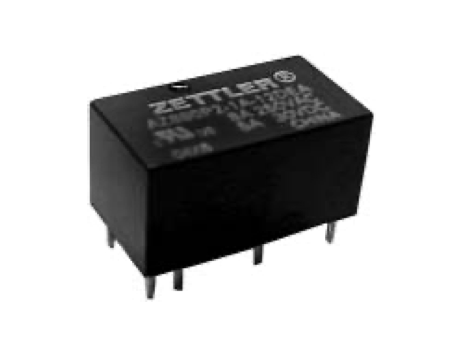

	AZ880	10A	SPST/DPST/SPST-NO+SPST-NC	UL/CUR	4000 Vrms dielectric	PCB mount

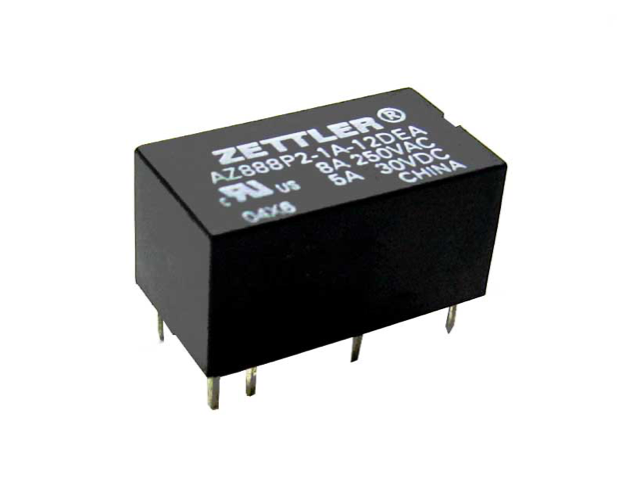

	AZ888	8A	SPST/DPST/SPST-NO+SPST-NC	UL/CUR	3000 Vrms dielectric	PCB mount
	AZ956P	1A	SPDT	UL/CSA	1500 Vrms dielectric	PCB and SMT mount
