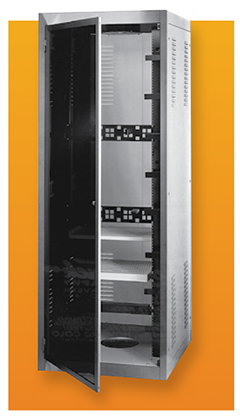

The Bud Communications Distribution Cabinet will fulfill your requirements for orderly and secure signal distribution. It comes completely assembled, ready for use and accepts all of Bud’s standard accessories.



DESIGN FEATURES

• Large 27.00 ̋ wide × 75.31 ̋ high × 30.75 ̋ overall depth ventilated cabinet with 19.00 ̋ × 70.00 ̋ EIA panel space
• Four 4.00 ̋ diameter cable access holes in the top and one 9.56 ̋ square hole in the base
• Two pairs of adjustable panel mounting rails (Use #7346 screws - order separately)
• Easy to use adjustable cable management system
• Lockable steel rear and see-through Plexiglas front doors
• 1200# equipment load capacity



FINISHES

• Black Texture (BT) is standard.
• Available in other Bud textured colors at no additional charge



Documents and Downloads

Document	File Type	File Size	Download
Distribution Datasheet	PDF	181 KB
