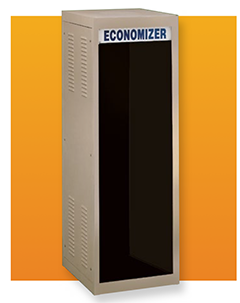

This high quality, low cost cabinet rack has a 19 ̋ panel width in both ventilated and non-ventilated versions.



DESIGN FEATURES

• Welded Frame: 14-gauge steel vertical rails. 16-gauge steel top and bottom. Uniquely designed, 16-gauge steel rail supports. Furnished complete with removable sides, rear door and one pair of panel mounting rails
• Panel Mounting Rails: 12-gauge steel. Fully adjustable, tapped #10-32 in front on EIA universal spacing. (Use #7346 screws - order separately.) Separate flange with .28 ̋ diameter holes provided for mounting accessories
• Side Panel: 20-gauge steel. Removable from outside for easy access
• Bottom: Pierced for RC-7758 casters, and with one 9.56 ̋ square hole and four 1.11 ̋ knockouts for cable access
• 1200# equipment load capacity
• 24 ̋ panel width cabinets available on special order



VENTILATED FEATURES

• Cabinet sides and door feature ventilating louvers. Ventilated cabinet top has a perforated area using .25 ̋ dia. holes on .31 ̋ staggered centers, inside a 9.69 ̋ dia. bolt circle. This provides a 58% open area. Holes provided for mounting a 10.00 ̋ dia. exhaust fan



FINISHES

• Sand Texture (S), Royal Blue Texture (RB) and Black Texture (BT) are standard. Available in other Bud textured finishes at no extra cost.
