Products
Thru-Panel Power Blocks
Blockmaster Thru-Panel Power Blocks

BlockMaster Electronic’s High-Power Thru-Panel Terminal Blocks are available 20A and 25A @ 300V. Also 50A-250A @ 600V. For added protection, we offer clear plastic covers for field installation. All of our products have UL approval and are RoHS compliant.

High and Medium-Power Terminal Blocks
Blockmaster High and Medium-Power Terminal Blocks

BlockMaster Electronic’s High-Power Terminal Blocks are rated at 90A, 115A, 175A, 255A and 380A at 600V. We offer a wide range of terminations, including screw, studs, and screw clamps. BlockMaster’s Medium-Power Terminal Blocks are rated at 50A/300V, 2 and 3 poles. Terminations include screw clamps and 0.250″ QCTerminals. All BlockMaster high and medium-power terminal blocks comply with UL and CSA standards as well as RoHS.

PCB High-Power Terminal Blocks
Blockmaster PCB High-Power Terminal Blocks

BlockMaster Electronic’s High-Power Terminal Blocks series start at 30A @ 300V and are available up to 130A @ 600V. For added protection, we offer clear plastic covers for field installation. All of our products have UL approval and are RoHS compliant...

Eurostyle Terminal Strips
Blockmaster Eurostyle Terminal Strips

BlockMaster Electronics offers a variety of Eurostyle blocks and terminal strips that are sure to suit your need. Our Eurostyle Terminal Strips are available with pitches of 8mm, 10mm, 12mm, and 14mm sizes; a range of 17.5A-41A; elevator clamps; and wire protector products. Custom legends are available (contact factory).

Single Row and Tri-Barrier Blocks
Blockmaster Single Row and Tri-Barrier Blocks

BlockMaster Electronic’s Single Row and Tri-Barrier Terminal Blocks are available from 10A-50A, up to 300V. 6.35mm up to 13mm, with solder and PC terminals, straight and right angle. Some parts have available mounting ends for added placement security.

Double Row Barrier Terminal Blocks
Blockmaster Double Row Barrier Terminal Blocks

BlockMaster Electronic’s Double Row Barrier Terminal Blocks are a valuable option for mounting on non-conductive surfaces. Available from 10A-75A, 250V-600V. 9.5mm, 11mm, 14mm and 17.45mm. Phillips/Slotted combo head screws, nickel plated. Value added services include adding 0.187″ or 0.250″ QCTerminals and jumpers.

PCB Terminal Blocks with Wire Guard
Blockmaster PCB Terminal Blocks with Wire Guard

BlockMaster Electronic’s Wire Guard Terminal Blocks have a variety of amperage, terminal sizes, and pole ranges to suit the needs of your projects

Pluggable Terminal Blocks
Blockmaster Pluggable Terminal Blocks

BlockMaster Electronics offers male and female connectors that have a variety of centerlines. We have standard & vertical plugs, dual level headers, ejector headers, and standard & pin strip headers.

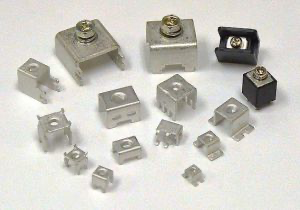

PCB & Surface Mount Screw Terminals & Blocks
Blockmaster PCB & Surface Mount Screw Terminals & Blocks

BlockMaster Electronic’s 25A to 150A PCB and Surface Mount Screw Terminals & Blocks are suitable for today’s requirements of high current terminations on printed circuit boards. Available in both straight and right angle versions for thru hole terminals. They can be supplied with or without screws.

Jelly Beans Multi-Colored Barrier Blocks
Blockmaster Jelly Beans Multi-Colored Barrier Blocks

Jelly Beans are a series of terminal blocks that can be assembled with different coloring for each position to help eliminate field installation mistakes. Jelly Bean terminal blocks have modular construction for customer-specified length, ten colors are available, standoffs for improved flux removal, and are UL recognized.

Screwless Terminal Blocks
Blockmaster Screwless Terminal Blocks

BlockMaster Electronics offer Screwless Terminal Blocks. These products are what they sound like – screwless! No screwdriver is needed for wire termination. These terminal blocks have a button, lever, slide, and poke-home versions that have a variety of centerlines.

Clear Connects
Blockmaster Clear Connects

BlockMaster Electronics offers a safer and easier method of wire connectors. Clear Connects provide visual confirmation of connection and help eliminate loose connections. Another feature is its built-in guide to determine how much wire to strip. Clear Connects are a great way to reduce wiring time and make connections in tight spaces.
