Thermal Circuit Breakers

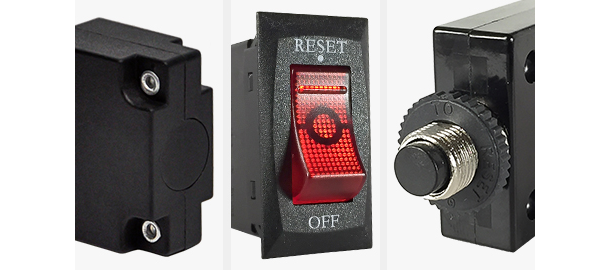

Thermal circuit protectors utilize a bimetallic strip electrically in series with the circuit. The heat generated by the current during an overload deforms the bimetallic strip and trips the breaker. Thermal protectors have a significant advantage over fuses in that they can be reset after tripping. They can also be used as the main ON/OFF switch for the equipment being protected. Carling offers a variety of 3 to 60 amp, lighted and non-lighted, rocker actuator and push-to-reset push button thermal circuit breakers with UL, CUL, CE, UL1500/ISO 8846 certifications. Auto cycling and resetting is also available with the CMBA/CLBA-Series.



A-Series Circuit Breaker

The CMBA/CLBA-Series feature automatic cycling and resetting thermal protection capabilities with the same performance as its traditional push-to-reset counterparts...

A-Series Circuit Breaker

The CMB-Series is a compact, single pole, push-to-reset family of thermal circuit breakers designed to protect equipment. Utilizing simple, precision design with few moving parts, these breakers offer cost effective, extremely reliable circuit protection with high resistance against shock and vibration. The CMB Series provides a consistent trip point over temperatures ranging from -10°C to +60°C. They are ideally suited for such applications as household and commercial appliances...

A-Series Circuit Breaker

The CLB-Series is a compact, single pole, push-to-reset family of thermal circuit breakers designed to protect equipment. The CLB-Series features ratings from 3-60 amps with a variety of bushing and termination options...

A-Series Circuit Breaker

Designed for industry standard .550 x 1.125 mounting hole, the C1005B-Series is a switch and a circuit protector in one small, compact package. This combination device eliminates the need for both a switch and thermal circuit protector on customer panels. By using only this multipurpose product, wiring and assembly costs are greatly reduced, while at the same time saving valuable panel real estate. This series is ideally suited for such applications as household and commercial ...

A-Series Circuit Breaker

The CTB-Series is a compact, single pole, rocker actuated family of thermal circuit breakers designed to protect equipment. Utilizing simple, precision design with few moving parts, these breakers offer cost effective, extremely reliable circuit protection with high resistance against shock and vibration. They are ideally suited for such applications as household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, power supplies...

Documents and Downloads

Document File Type File Size Download
Thermal Circuit Breaker Catalog PDF 2.92 MB
