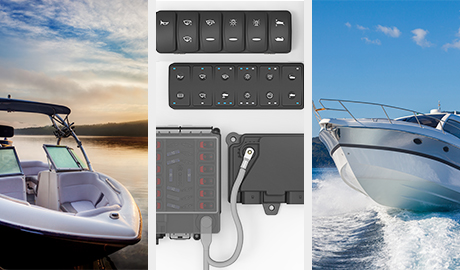

The OctoLite® distributed power control and monitoring system puts the user in control while providing greater safety and reliability in an easy to operate system. This flexible-to-configure system includes devices such as multi-function touchscreen display, configurable keypad, multiplex switch module, solid-state power controller, bypass module, and AC distributed power module. Together, these devices provide:
The OctoLite system can interface with the Carling Technologies version of N2KView® software with remote monitoring capabilities for ease of use and any-time accessibility to the system status. The OctoLite System can also be used in conjunction with Garmin’s® OneHelm™ GPSMAP® 8400/8600 MFD.
The Octolite Multifunction 8” touchscreen display allows the user to control and monitor the OctoLite® system and other various functions. It provides interface with NMEA2000® CAN Bus, one Ethernet port and two USB ports for software upgrades. The power input range on this unit is 10 to 32 VDC...
The AC Power Distribution Unit provides up to 8 remotely controlled hydraulic magnetic circuit breakers that can be mounted virtually anywhere in the vessel. AC circuit breakers are available from 1 to 50 amps. The AC unit provides remotely controlled ON/OFF/RESET functions via NMEA2000® CAN bus. Each breaker can also be manually actuated. The maximum current capacity of this unit is 50 Amps...
The CLM-Series is a 12 output, solid state power controller. It provides fast switching with low loss solid state On/Off functions, accurate current measurement, short circuit protection and Pulse-Width Modulation (PWM) function. The outputs can be connected in parallel for higher current capacity. The CLM-Series also provides interface with up to 7 discrete inputs. The discrete inputs can be configured as an active-high or active-low logic. The maximum current capacity of this unit ...
When used in conjunction with the CLM-Series, the CBM-Series Bypass Module provides manual control of the loads in case of system failures. It utilizes standard fuses for overcurrent protection and 12 Carling Curvette® rocker switches for manual control of each load...
The CKM-Series is a customizable keypad featuring laser etched legends and dimmable LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected. With the rugged mechanical packaging (IP69), the CKM-Series can be installed inside or outside the cabin. The low-profile design offers a seamless dashboard look and it can be mounted either vertically or horizontally....
The VMM-Series is a sealed, multiplexed switch module featuring the Carling V-Series Contura® rocker switch styles. The VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time...
