CotoMOS® MOSFET Relays are a reliable, economical and readily available solid state switching solution by Coto Technology. Using highly-reliable, custom designed, MOSFET technology, CotoMOS® provides high-performance for applications requiring low input power and virtually unlimited life. Ideally suited to the needs of industrial controls, security, metering, instrumentation and automatic test equipment (ATE), CotoMOS® is available in Form A, Form B, Form A+B (Form C) form factors to service a wide range of switching requirements. The CotoMOS® solid state series is available in various package styles that include a 4-, 6- and 8-pin DIP, in through-hole and surface mount packages. Additionally, 4- and 8-pin SOP surface mount packages are available. Capable of switching from 40V up to 600V, the current switching capability ranges from 30mA to 4.5A.

Documents and Downloads

Series	Image	Contact Form	Line Voltage	Operation LED Current	Load Current

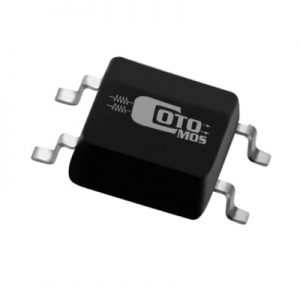

C208S Series		1 Form A	100V		150 mA
C212S Series		1 Form A	60V		400 mA
C217S Series		1 Form A	60V		130 mA
C2211S/C3211S Series		C2211S: 1A / C3211S: 2A	40V Maximum	3.0mA Maximum	0.25A Maximum
C2231S/C3231S Series		Contact Form: C2231S: 1A / C3231S: 2A	250V Maximum	3.0mA Maximum	0.17A Maximum
C226S/C326S Series		C226S: 1A / C326S: 2A	40V Maximum	3.0mA Maximum	C226S:2.0A Maximum / C326S: 1.6A Maximum
C230S/C330S Series		C230S: 1A / C330S: 2A	400V Maximum	3.0mA Maximum	C230S: 100mA Maximum / C330S: 85mA Maximum
C231S/C331S Series		C231S: 1A / C331S: 2A	350V Maximum	3.0mA Maximum	C231S: 120mA Maximum / C331S: 100mA Maximum
C234S/C334S Series		C234S: 1A / C334S: 2A	200V Maximum	3.0mA Maximum	C234S: 180mA Maximum / C334S: 160mA Maximum
C235S/C335S Series		C235S: 1A / C335S: 2A	80V Maximum		C235S: 80mA Maximum / C335S: 70mA Maximum
C236S-HT Series		1 Form A	60V Maximum	2.0mA Maximum	350 mA
C237S/C337S Series		C237S: 1A / C337S: 2A	60V Maximum	3.0mA Maximum	C237S: 350mA Maximum / C337S: 320mA Maximum
C238S/C338S Series		C238S: 1A / C338S: 2A	600V Maximum	1.0mA Maximum	70mA Maximum / C338S: 80mA Maximum
C245S-A / C345S-A Series		C245S-A: 1A / C345S-A:2A	60V Maximum	3.0mA Maximum	200mA Maximum
C245S/C345S Series		C245S: 1A / C345S: 2A	60V Maximum	3.0mA Maximum	100mA Maximum
C247S/C347S		C247S: 1A / C347S: 2A	80V Maximum	3.0mA Maximum	C247S: 1.25A Maximum / C347S: 1.0A Maximum
C248S/C348S Series		1A/2A	100V Maximum	3.0mA Maximum	310mA Maximum

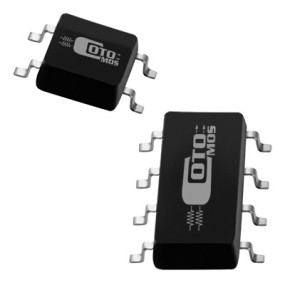

C570S/C670S Series		1B/2B	60V Maximum	3.0mA Maximum	440mA Maximum
C574S/C674S Series		C574S: 1B / C674S: 2B	400V Maximum	3.0mA Maximum	C574S: 70mA Maximum / C674S: 60mA Maximum

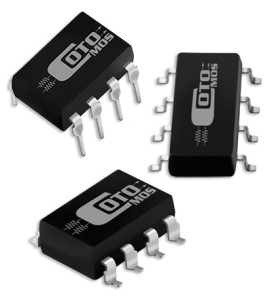

C770S/CT770S/CS770 Series		1A+1B	60V Maximum	3.0mA Maximum	380mA Maximum

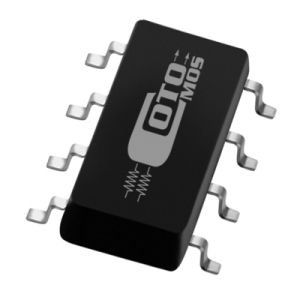

C774S Series		1A+1B	400V Maximum	3.0mA Maximum	80mA Maximum (NO) 60mA Maximum (NC)
CS230-HC Series		1A	350V Maximum	5.0mA Maximum	130mA Maximum
CT124/CS124 Series		1A	40V Maximum	3.0mA Maximum	3.5A Maximum
CT126/CS126 Series		1A	40V Maximum	3.0mA Maximum	2.0A Maximum
CT128/CS128 Series		1A	40V Maximum	3.0mA Maximum	4.5A Maximum
CT130-C / CS130-C & CT130-HC / CS130-HC Series		1A	400V Maximum	3.0mA Maximum	120mA Maximum
CT130/CS130 Series		1A	400V Maximum	3.0mA Maximum	120mA Maximum
CT131/CS131 Series		1A	350V Maximum	3.0mA Maximum	130mA Maximum
CT134/CS134 Series		1A	200V Maximum	3.0mA Maximum	200mA Maximum
CT135/CS135 Series		1A	80V Maximum	3.0mA Maximum	100mA Maximum
CT136/CS136 Series		1A	60V Maximum	3.0mA Maximum	2.5A Maximum
CT136HT/CS136HT Series		1A	60V Maximum	8.0mA Maximum	500mA Maximum
CT137/CS137 Series		1A	60V Maximum	3.0mA Maximum	400mA Maximum
CT138/CS138 Series		1A	600V Maximum	3.0mA Maximum	80mA Maximum

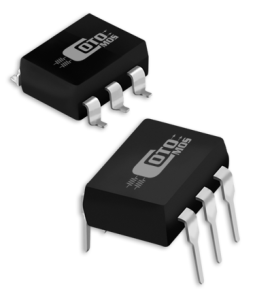

CT147/CS147 Series		1A	80V Maximum	3.0mA Maximum	2.0A Maximum
CT148 / CS148 Series		1A	100V Maximum	3.0mA Maximum	350mA Maximum
CT232/CS232/CT332/CS332 Series		1A/2A	400V Maximum	3.0mA Maximum	120mA Maximum
CT248 / CS248 / CT348 / CS348 Series		1A/2A	100V Maximum	3.0mA Maximum	350mA Maximum
CT326/CS326 Series		2A	40V Maximum	3.0mA Maximum	2.0A Maximum
CT330/CS330 Series		2A	400V Maximum	3.0mA Maximum	100mA Maximum
CT331/CS331 Series		2A	350V Maximum	3.0mA Maximum	110mA Maximum
CT334/CS334 Series		2A	200V Maximum	3.0mA Maximum	180mA Maximum
CT335/CS335 Series		2A	80V Maximum	3.0mA Maximum	80mA Maximum

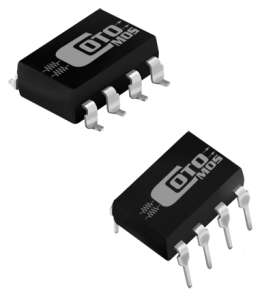

CT337/CS337 Series		2A	60V Maximum	3.0mA Maximum	360mA Maximum
CT338/CS338 Series		2A	600V Maximum	3.0mA Maximum	70mA Maximum
CT470/CS470 Series		1B	60V Maximum	3.0mA Maximum	440mA Maximum
CT474/CS474 Series		1B	400V Maximum	3.0mA Maximum	90mA Maximum

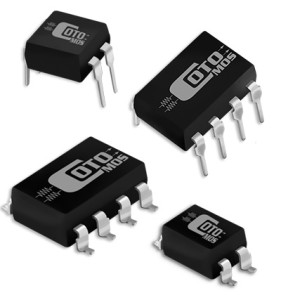

CT570 / CS570 / CT670 / CS670 Series		1B/2B	60V Maximum	3.0mA Maximum	440mA Maximum
CT674/CS674 Series		2B	400V Maximum	3.0mA Maximum	80mA Maximum
CT774/CS774 Series		1A+1B	400V Maximum	3.0mA Maximum	100mA Maximum (NO) 80mA Maximum (NC)
CTA17/CSA17 Series		1A	350V Minimum	3.0mA Maximum	120mA Maximum
CT140/CS140 Series		1A	1500V Maximum	5.0mA Maximum	45mA A(AC), 50mA B(DC), 75mA C(DC)
