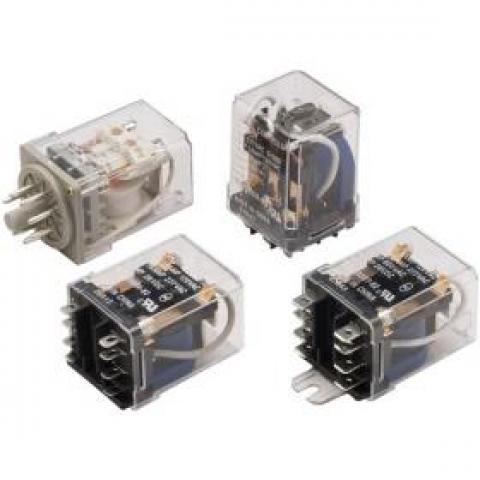

General Purpose Relays are cost-effective 5-15 Amp switching devices used in a wide variety of applications.



Features



• Electrical loads of 5 to 15 Amps
• Contact configurations through 3PDT
• Class F coil insulation system for 155°C total temperature
• Coils molded in Polyester for environmental protection
• Panel, bracket, socket, and PC terminal mounting options



Typical Applications: Lighting controls, time delay controls, industrial machine controls, energy management systems, control panels, forklifts, HVAC



General Purpose Relays

Model	Cover	Max Amp	Pole Config	Terminals
100	Open	10	Thru 3PDT	0.13 solder lugs
263	Open	15	Thru 3PDT	0.187 QC
166	Flange, Plain, Top Mount, Stud	13	Thru 3PDT	0.187 QC
101	Open	10	Thru 3PDT	0.13 solder lugs | pcb terms
265	Flange, Plain, Top Mount, Stud	5	Thru 3PDT	0.25 QC
177	Open	30	Thru SPDT	0.25 QC
105	Plain	10	Thru 3PDT	8 or 11 Pin-Plug
266	Flange, Plain, Top Mount, Stud	10	Thru 3PDT	0.25 QC
260	Open	5	Thru 3PDT	0.25 QC
160	Open	5	Thru 3PDT	0.187 QC
267	Flange, Plain, Top Mount, Stud	15	Thru 3PDT	0.25 QC
261	Open	10	Thru 3PDT	0.25 QC
161	Open	13	Thru 3PDT	0.187 QC
268	Plain, Flange	15	Thru 3PDT	0.187 QC
262	Open	15	Thru 3PDT	0.25 QC
165	Flange, Plain, Top Mount, Stud	5	Thru 3PDT	0.187 QC
