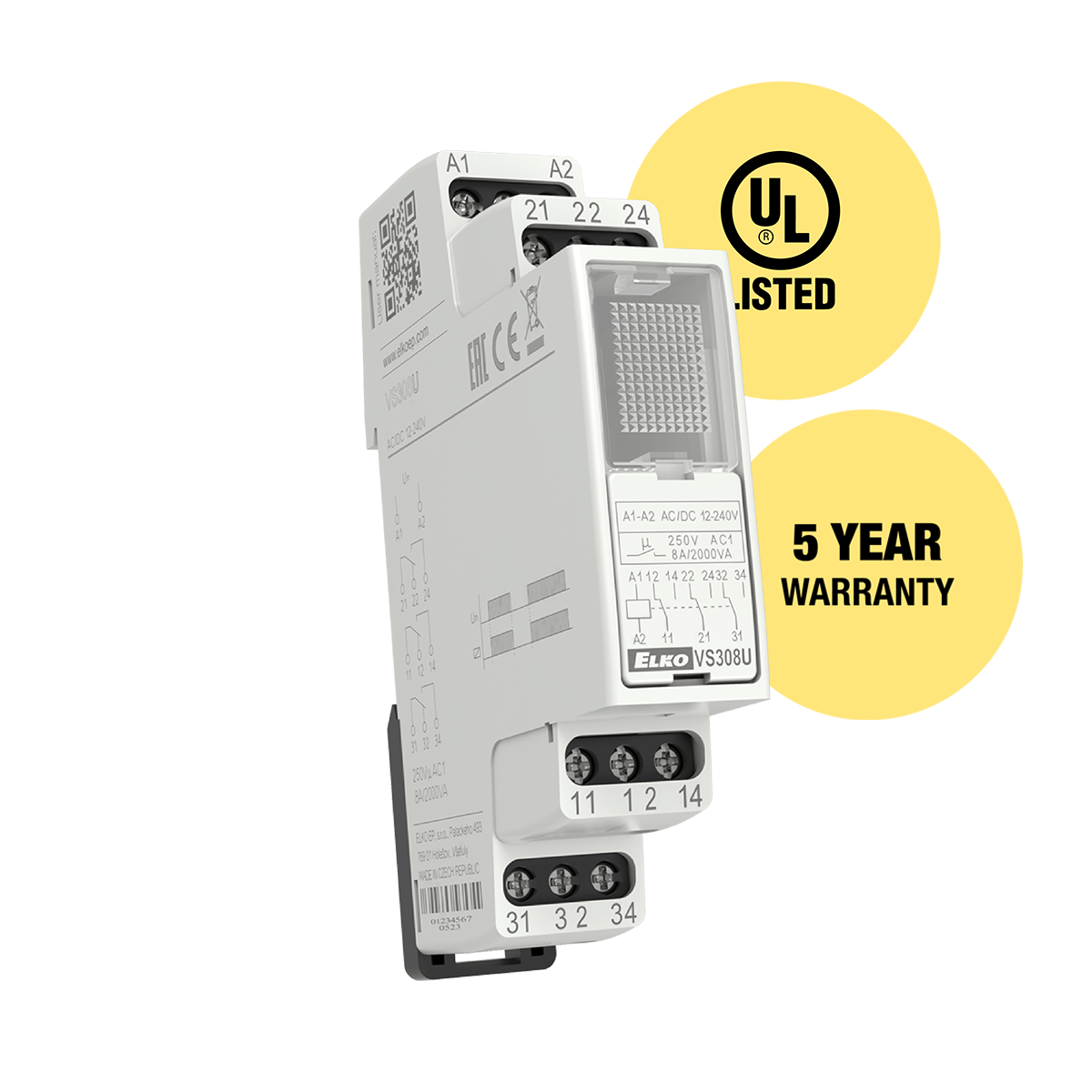

Power relay used for switching larger load output, strengthen or „multiplying“ contacts of the existing device.
Relays VS316/24, VS316/230 enable connection to a 3-phase circuit.
In the design 1-MODULE , DIN rail mounting, output status indicated by high intensity LED with choice of LED color (red, green, yellow, blue or white LED*).
VS116/B230 MINI, mounting in installation box or ceilings, enabling switching of lights, motors for blinds or awnings.
For VS116/B230 status of output indicated by LED on front panel of device.

Voltage range	AC/DC 12-240 V / 50-60 Hz
Burden (max.)	AC 0.7 – 3 VA/ DC 0.5 – 1.7 W
Number of contacts	3 x changeover/TPDT 8 A (AgNi / Silver Alloy
Mounting	DIN rail EN 60715
Protection degree	IP40 from front panel / IP20 terminals
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
Weight	80 g (2.8 oz.)
