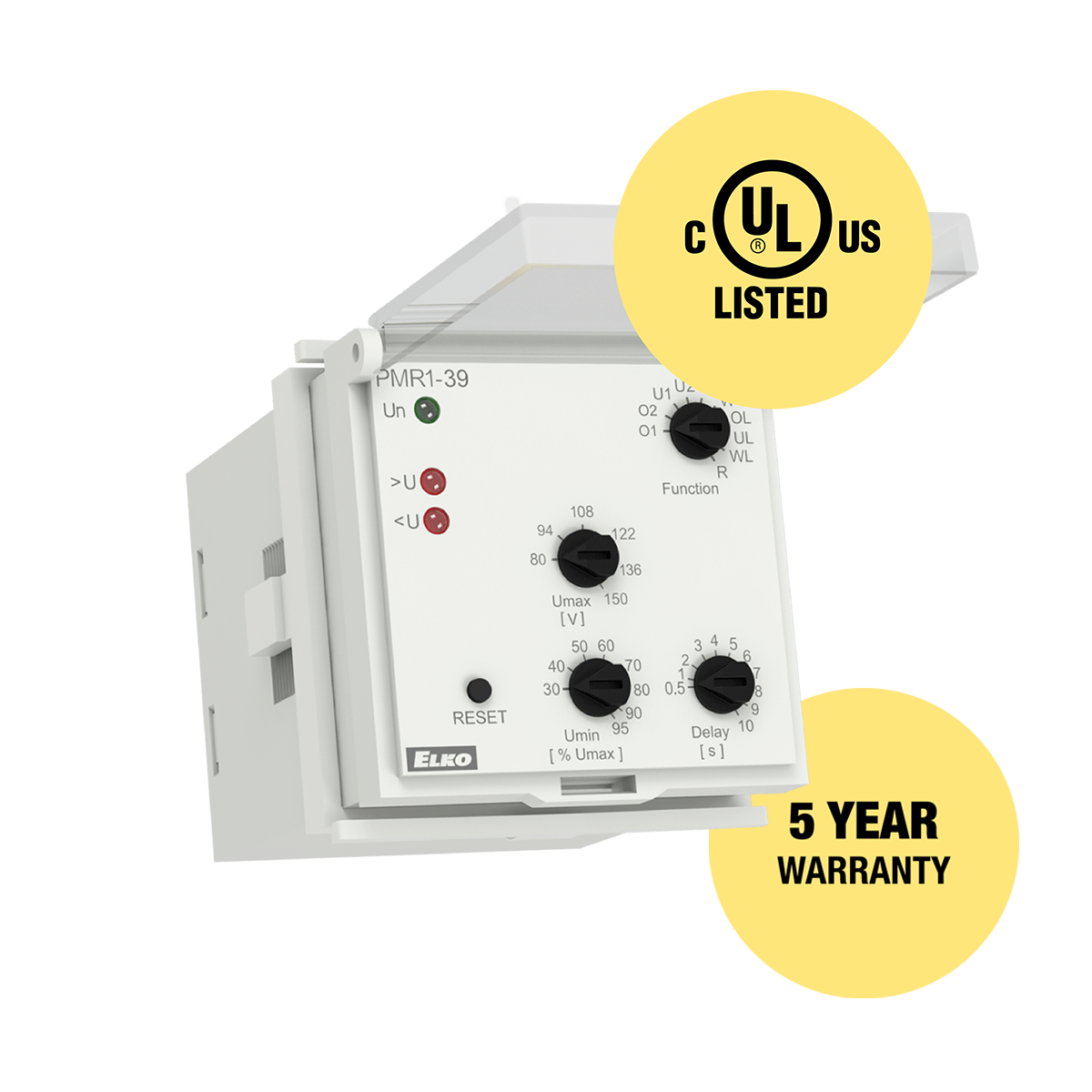

Voltage monitoring relay

Multifunction, range 80-150 AC/DC, 1/2 output(s)



Description



• It is used to monitor the value of alternating or direct voltage in 1-phase circuits.
• Supply voltage from monitored voltage.
• Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
• Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
• Adjustable time delay (to eliminate short-term voltage drops and peaks).
• Option to select functions with fault state memory (Latch).
• The fault state memory can be reset with a button on the panel (RESET).
• Measures true root mean square value of the voltage – TRUE RMS.

Technical parameters

Overvoltage	Yes
Undervoltage	Yes
Monitored range	AC/DC 24 – 150 V
Output contact	1x CO, 16 A
Housing	8-PIN into socket
Power supply	from monitored voltage
Dimensions	48 × 48 × 79 mm (1.89˝ × 1.89˝ × 3.11˝)

Documents and Downloads

Document	File Type	File Size	Download
PMR1-31, PMR1-36, PMR1-39 Series Datesheet	PDF	819 KB
