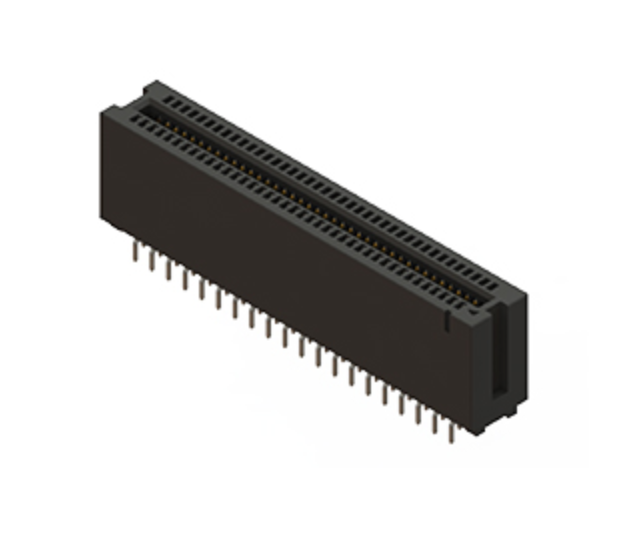

Features

• 0.050" (1.27mm) Contact Spacing
• Accepts .062" (1.57mm) Nominal Thickness P.C. Board
• High Insulator Body, .551" (14mm)
• Contact Termination options include P.C. Tail, 90 Degree Bends, and Extender Board Bends
• Dual Row Configurations
• RoHS Compliant

Specifications

Insulator Material	UL 94V-0 Thermoplastic PA66 Black Color
Contact Material	Copper Alloy
Contact Plating	Selective Gold Plating on the mating area with Tin Plating on Solder Tails and Nickel underplating all over
Current Rating	1 amp
Contact Resistance	30 milliohms maximum
Dielectric Withstand Voltage	500 V AC rms 60Hz for 1 minute
Insulation Resistance	1000 Megaohms minimum
Operating Temperature	-55°C to +85°C
Insertion Force	230 grams maximum per contact pair
Withdrawal Force	15 grams minimum per contact pair
