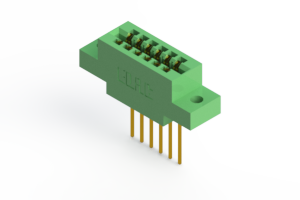

Feature

• .156" (3.96mm) Contact Spacing x .200" (5.08mm) Row Spacing
• Accepts .062" (1.57mm) Nominal Thickness P.C. Board
• High Profile Insulator Body, .720" (18.29mm)
• Contact Termination .045" (1.14mm) Square Wire Wrap
• Single or Dual Row Configurations
• Large Variety of Mounting Options
• Accepts between Contact and In-Contact Polarizing Keys
• Pre-assembled Card Guides are available
• RoHS Compliant

Specifications

Insulator Material	UL 94V-0 Diallyl Phthalate, Green Color
Contact Material	Copper Alloy
Contact Plating	Gold Plating with Nickel underplating all over
Current Rating	5 Amperes
Contact Resistance	10 milliohms maximum
Dielectric Withstand Voltage	1800 VAC rms at sea level between adjacent contacts
Insulation Resistance	5000 Megaohms minimum
Operating Temperature	-65°C to +125°C
Insertion Force	16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
Withdrawal Force	1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge
