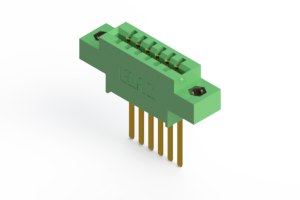

Feature

• 0.156" (3.96mm) contact spacing x 0.188" (4.78mm) row spacing
• Accepts 0.062" (1.57mm) nominal thickness P.C. board
• High profile insulator body, 0.720" (18.29mm)
• 0.062" (1.57mm) x 0.031" (0.79mm) wire wrap contact termination
• Single or dual row configurations
• Variety of mounting options
• Accepts between contact and in-contact polarizing keys
• RoHS Compliant

Insulator Material	DAP (Diallyl Phthalate, UL-94V-0, Green Color)
Contact Material	Copper Alloy
Contact Plating	Gold plating on mating area and tin plating on tails with nickel underplating all over
Current Rating	5 amps
Contact Resistance	10 milliohms maximum
Dielectric Withstanding Voltage	1800 V AC rms at sea level between adjacent contacts
Insulation Resistance	5000 megaohms minimum
Operating Temperature	-65°C to +125°C
Insertion Force	16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
Withdrawal Force	1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
