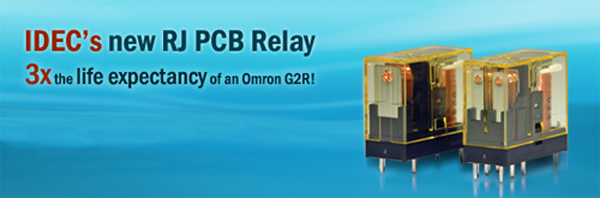

Innovative new PCB relays have 3 times the life expectancy of an Omron G2R!





Overview

Is Omron or Finder squeezing you out by selling relays direct? Are your customers looking for a durable and compact relay with a large switching capacity? If so, then IDEC has the answer! New IDEC RJ relays are available with plug-in PC board terminals and switching currents up to 16A. Plus, a unique return spring structure (see back page) eliminates unneccessary weak points allowing for increased electrical conductivity and longer service life.



The RJ relay footprint is the most common footprint demanded by customers with over 40 million sold annually (Omron, Finder, Allen-Bradley, etc.). The IDEC RJ series of PCB relays are available in 8A, 12A and 16A switching currents with an operational life of 200K cycles and a mechanical life of 50 million cycles. Both SPDT, SPDT-NO, DPDT and DPDT-NO configuration types are available. Like the rest of the RJ family of relays, RJ PCB relays have been manufactured with attention to even the smallest details. Using our automated manufacturing technologies, an innovative design was utilitized in the internal construction of moving parts ensuring the highest-quality, reliable relays.



Correlating sockets include multiple features for ease-of-use. These sockets can be DIN rail, panel mounted, or PCB mounted. The DIN rail/panel mount socket has IEC finger-safe terminals, where the coil and contact terminals are on opposite sides of the socket. The PCB mount socket allows you to replace a relay without even having to de-solder.



IDEC RJ relays are UL recognized, CSA certified, VDE approved and CE marked in compliance with IEC 61810-1.



Highlights



  • NEW! 8A, 12A and 16A switching currents
  • NEW! Unique return spring structure
  • NEW! 3X mechanical life compared with equivalent Omron or Finder relays
  • Better relay at a competitive price!
  • Contact confi gurations: SPDT, SPST-NO, DPDT, DPST-NO
  • Operational life: 200K cycles; Mechanical life: 50M cycles
  • Correlating sockets available
