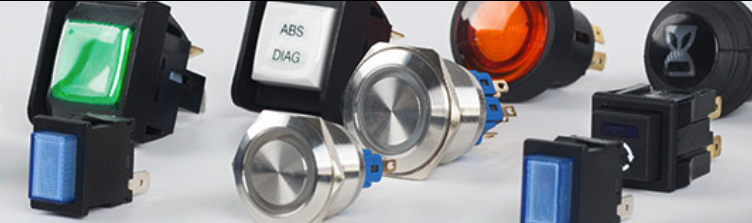

The Push Button switches available from Oslo Switch come in a wide variety of color, shape and overall design. These switches are available in non-illumination or illumination with LED color options.
Approvals: UL recognized, CSA certified, VDE approved. / Load rating: 10A 125/250 VAC, 1/4 HP, 125 VAC; 10A 14VDC. / Contacts: fine silver, double break. / Circuits: single-pole and double-pole. / Dielectric strength: 2000 VAC RMS. / Life: 25,000 operations at maximum rating.
Approvals: UL & CSA approved; VDE approvals pending. / Load rating: 10A 125/250 VAC, 1/4 HP, 125 VAC; 10A 14VDC. / Contacts: fine silver, double break. / Circuits: single-pole and double-pole. / Dielectric strength: 2000 VAC RMS. / Life: 25,000 operations at maximum rating..
Push Button Switches / 10A 125/250 VAC - 1/4 HP 125 VAC - 10A 14 VDC / 6, 12 and 28 volt incandescent lamps. 125 and 250 volt neon lamps. 6 or 12 volt LED's.
Features: Panel sealer IP67 (front panel)/ Square or round bezels / Illuminated or non-illuminated / Momentary action / Thermoplastic case / Threaded or snap-in cases
Approvals: UL pending, CSA pending, VDE pending. / Load rating: 15A 250VAC (UL, CSA) 12(2) A250VAC(VDE). / Contact: silver alloy. Dielectric strength: >1500V 1 minute. / Life: <30,000 operations at maximum rating.
Illuminated Anti-Vandal Push Button Switch / Electrical Rating: 5A 250VAC
IP67 Anti-Vandal Push Button Switch / Electrical Rating: 3A 250VAC
