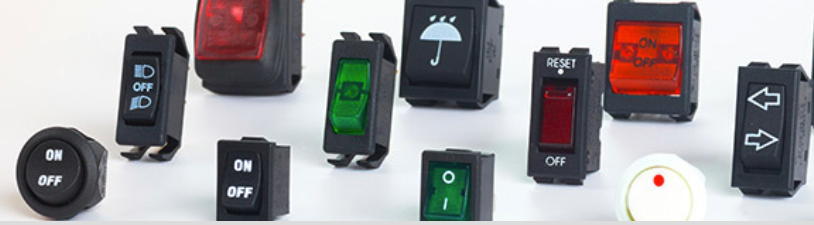

A rocker switch is an on/off switch that “rocks” when pressed. These switches are commonly used to power a device directly. Rocker Switches from Oslo Switch are available in a wide variety of shapes, sizes and colors as well as custom options.
Approvals: UL recognized, CSA certified. / Load rating: 20A 125/250 VAC. 1 HP, 125/250 VAC. 14A 14VDC. / Contacts: fine silver for long life dependability. / Dielectric strength: 1250 volts (live parts to ground). / Life: 35,000 operations at maximum rating. / Insulation resistance: 5 megohms.
Approvals: UL recognized, CSA certified. / Load rating: 20A 125/250 VAC. 1 HP, 125/250 VAC. 14A 14VDC, VDE approval 15A. / Contacts: fine silver for long life dependability. / Dielectric strength: 1250 volts (live parts to ground). / Life: 35,000 operations at maximum rating. / Insulation resistance: 5 megohms.
Approvals: UL, CSA and VDE approvals pending. / Load rating: 20A 125/250 VAC. 3/4 HP, 125/250 VAC. 14A 14VDC. / Contacts: fine silver for long life dependability. / Dielectric strength: 1250 volts (live parts to ground). / Life: 35,000 operations at maximum rating. / Insulation resistance: 5 megohms.
Approvals: UL recognized, CSA certified. / Load rating: 20A, 125/250 VAC. 20 amperes 125/250 VAC. 3/4 HP, 125/250 VAC. 14A VDC. VDE approval pending. / Dielectric strength: 1250 volts (live parts to ground). / Life: 35,000 operations at maximum rating. Insulation resistance: 5 megohms...
Approvals: UL recognized, CSA certified, VDE approved. / Load rating: 20A 125/250 VAC. 1 HP, 125/250 VAC. 14A 14VDC. / Contacts: fine silver for long life dependability. / Dielectric strength: 1250 volts (live parts to ground). / Life: 35,000 operations at maximum rating. / Insulation resistance: 5 megohms....
Approvals: Approval Symbols: UL recognized. CSA and VDE approvals pending. / Load rating: 20A 125/250 VAC. 3/4 HHP, 125/250 VAC. 14A 14 VDC....

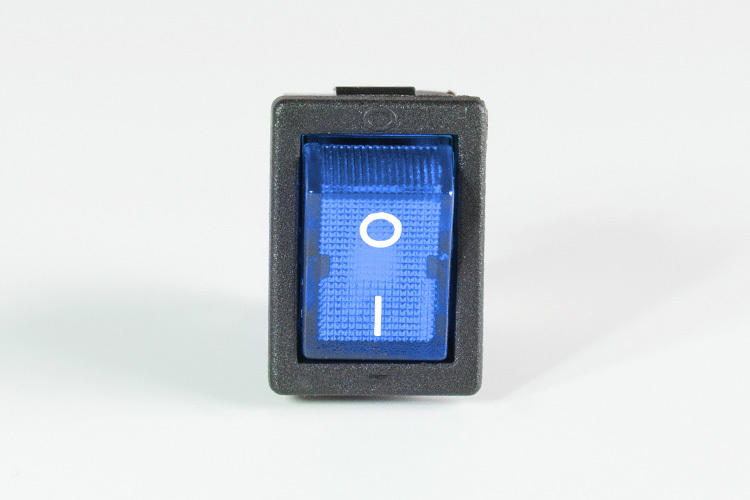

Features: Lighted or non-lighted / Snap-in mounting / Quick connect terminals / Approvals: Approval Symbols...
Features: Snap-in mounting / Choice of terminals / Approvals: Approval Symbols / Maintained or momentary
Features: Snap-in mounting / Quick connect terminals...
Approvals: UL recognized, CSA certified. Load rating: 20A 125/250 VAC. 1 HP, 125/250 VAC. 14A 14VDC, VDE approval 15A. Contacts: fine silver for long life dependability. Dielectric strength: 1250 volts (live parts to ground). Life: 35,000 opera- tions at maximum rating. Insulation resistance: 5 megohms.
