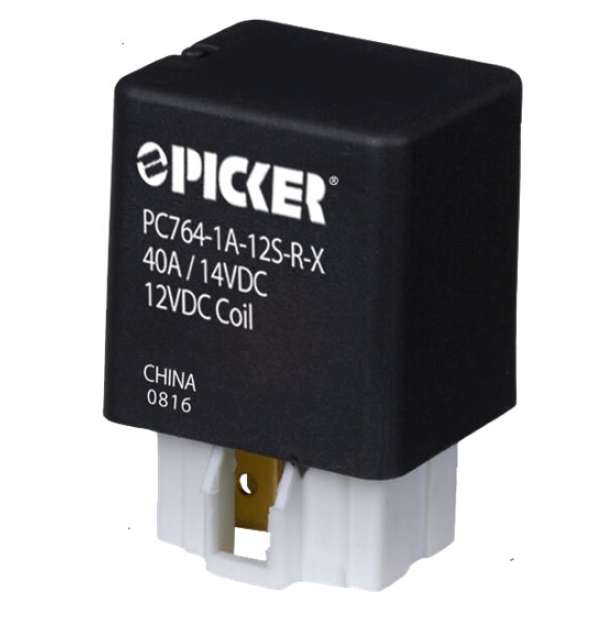

Features:



• Direct Insert Mounting
• Contact Switching Capacity up to 40 Amps
• Internal Resistors Available
• RoHS Compliant
• See PC763 for 30 Amp Version

Characteristics

Operate Time	10 msec or less (without coil suppression)
Release Time	7 msec or less (without coil suppression)
Insulation Resistance	100 MΩ min at 500VDC
Dielectric Strength	500 V 50 Hz between contacts 750 V 50 Hz between coil and contacts
Power Consumption	1.5 W
Terminal Strength	10N
Operating Temperature	-40 to 105°C Operating
Relative Humidity	85% (45°C)
Shock Resistance	100m/ss 11 ms
Vibration Resistance	10 Hz - 55 Hz Double Amplitude 1.5 mm
Weight	35 grams

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC764 Series Datesheet	PDF	287 KB
