Features:



• 1 and 2 Pole Contact Forms
• 12 & 20 Amp Switching Capacity
• AC & DC Coils Available
• Available as Plug-In or PC Pins
• Available with Gold Plated Contacts
• Available with Top Mounting Flange
• Available Compatible with SC113 Series Socket

Characteristics

Insulation Resistance	100MΩ min. at 500 VDC
Dielectric Strength	1500V rms, between coil & contacts 1000V rms, between open contacts 1000V rms, between poles
Power Consumption	.9W, 1.2VA
Terminal Strength	8N QC; 4N PCB
Solderability	260°C 5 s ± 0.5 s
Operating Temperature	-40ºC to 85ºC
Storage Temperature	-40ºC to 155ºC
Shock Resistance	100 m/s2 11 ms
Vibration Resistance	10-40 Hz double amplitude 1.27mm
Weight	~50g

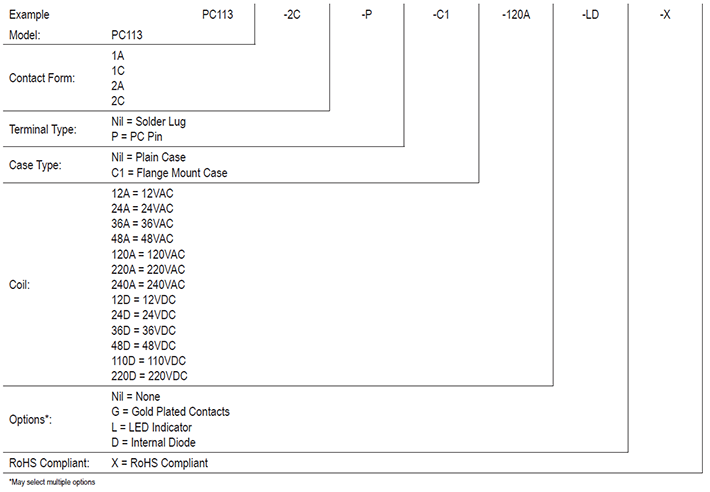

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC113 Series Datesheet	PDF	310 KB
