Features:



• 15 Amp Continuous Contact Capacity
• 1 Form A, 1 Form B and 1 Form C Contact Forms
• Most Popular Package and Footprint
• Class “B” Insulation Standard
• Class “F” Insulation Available
• Sealed, Immersion Cleanable
• RoHS Compliant

Detail Specs

Operate Time	Less than 10 ms
Release Time	Less than 5 ms
Insulation Resistance	1,000 MΩ min., at 500 VDC, 50% RH
Dielectric Strength	1500 Vrms, 1 min. between coil and contacts 750 Vrms, 1 min. between open contacts
Shock Resistance	10 g, 11 ms, functional; 100 g, destructive
Power Consumption	.36 W
Vibration Resistance	DA 1.5 mm, 10 - 55 Hz
Terminal Strenght	5N
Solderability	260 ºC for 5 seconds
Operating Temperature	-55 ºC to 85 ºC
Relative Humidity	93% (at 40°C)
Weight	9.5 grams

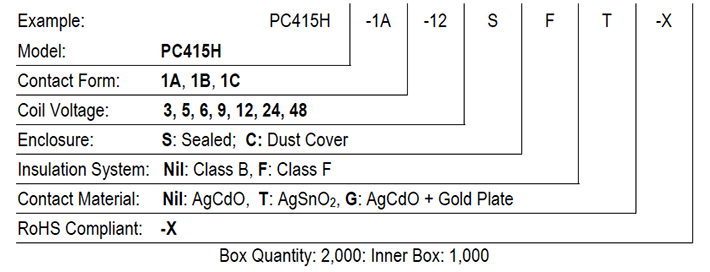

Ordering Information

Documents and Downloads

Document	File Type	File Size	Download
PC415H Series Datesheet	PDF	1.0 MB
