Features:

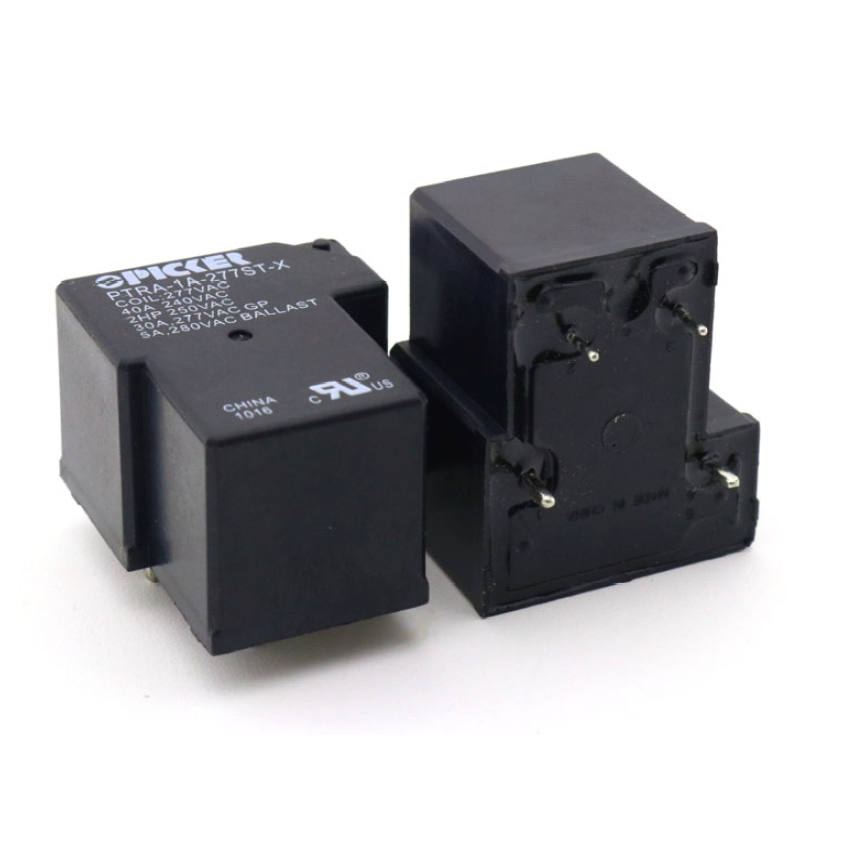

• Power PCB Relay with AC Coils
• 40 Amp 240 VAC Resistive UL Rating
• 2 HP 250 VAC Rating
• UL Class F Insulation Standard
• Meets UL 508 and UL 873 Spacing
• RoHS Compliant

Detail Specs

Operate Time	15 ms max.
Release Time	10 ms max.
Insulation Resistance	1,000 MΩ min, at 500 V
Power Consumption	2.0 VA
Dielectric Strength	50 Hz 1,500 V Between Open Contacts 50 Hz 2,500 V Between Contacts and Coil
Shock Resistance	200 m/s2
Vibration Resistance	10 Hz - 55 Hz Double Amplitude 1.5 mm
Terminal Strength	10N
Solderability	260ºC for 5 seconds
Storage Temp. Range	-55°C to 125°C
Operating Temp. Range	-55°C to 100°C
Relative Humidity	85% (at 40°C)
Weight	31 grams
Material Compliant To	EU RoHS V2, EU REACH V3
