110 Solar and Power Supply High Capacity 32A PCB relay with large contact gap

Song Chuan Contactors - 110 Series

High duty sugar cube relay with 26A 277VAC, 32A 277VAC.
Contact gap can be greater than 1.5 & 2.1 mm.
Conforms to European photovoltaic standard IEC 62109-1.
Coil holding voltage can be reduced to 36%, 55%V of the nominal coil voltage for saving energy.
High performance PCB power relay for photovoltaic power generation systems (solar inverter), motor control, compressor control, home appliances.
Complies with RoHS-Directive 2011/65/EU.

Part Series:	110
Contact Configuration	1A
Contact Rating(Resistive Load)	240VAC 26A 240VAC
Coil Voltage	DC: 12~48V
Power Consumption	1.67W (Holding:0.5W)

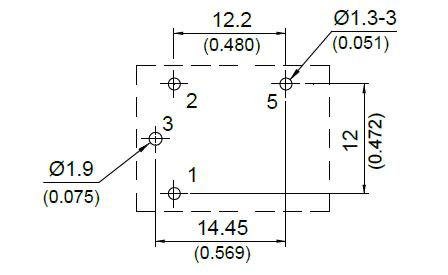

Song Chuan Series 110 Dimesnion Drawing
