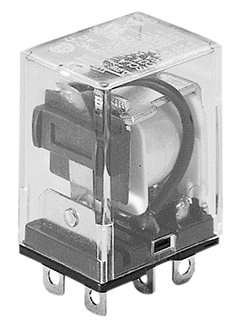

SCLA 10A general purpose relay

Song Chuan General Purpose Relay - SCLA Series

15A general purpose power relay.
UL/CUL, CSA, TUV approved.
Optional AC and DC coil.
Optional with and or without lamp, push-to-test button, stud, etc.
Sealed and washable type with knock-off nib vent.
Plain or top flange cover, PCB and or solder lug/quick terminals.
Contact rating up to 15A 250VAC ( SPNO)
Complies with RoHS-Directive 2011/65/EU.

Part Series:	SCLA
Contact Configuration	1A, 1B, 1C
Contact Rating(Resistive Load)	10A 250VAC, 10A 30VDC
Coil Voltage	DC: 6 - 120V AC:12 - 240V
Power Consumption	DC: 0.9W AC: 1.2VA

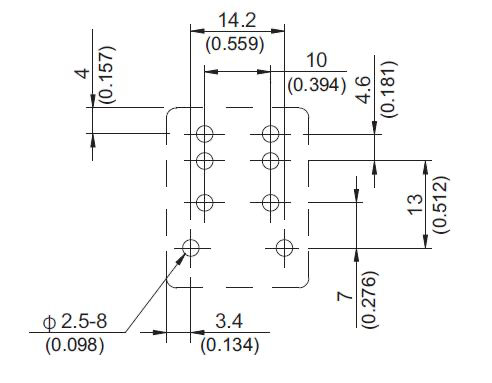

Song Chuan Series SCLA Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
SCLA Series Datesheet	PDF	883 KB
