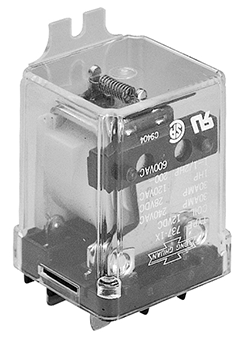

737 30A general purpose relay

Song Chuan Power Relay - 737 Series

30A general purpose power relay.
SPDT, SPDB, SPDM+DB contact configurations.
AC and DC coils are both available.
Optional for anti-rotation tab, tapped core indicator lamp and push-to-test button, flanged covers. (side flange and top flange).
Complies with RoHS-Directive 2011/65/EU

Part Series:	737
Contact Configuration	DM-DB
Contact Rating(Resistive Load)	30A 300VAC, 15A 600VAC, 30A 28VDC, 1.5HP 200-600VAC
Coil Voltage	DC: 6 - 125V AC: 6 - 240V
Power Consumption	DC: 1.2W - 1.5W AC: 3.0VA

Song Chuan Series 737 Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
737 Series Datesheet	PDF	781 KB
