793 High Inrush 17A PCB Relay

Song Chuan Power Relay - 793 Series

High rating general purpose miniature PCB power relays.
Optional for 700mW coil and 530mW coil.
5mm planning 16A TV-10 ideally form high inrush current breaking application for UPS, power supply and Heading Element control of Home Appliances, and lighting controls.
High dielectric strength 5000V between coil and contacts, 1000V between contacts.
Optioanl for sealed flux free and sealed washable types.
Complies with RoHS-Directive 2011/65/EU.

Part Series:	793
Contact Configuration	1A, 1B, 1C
Contact Rating(Resistive Load)	16A 240VAC
Coil Voltage	DC: 3 - 100V
Power Consumption	DC: 0.7W - 0.53W

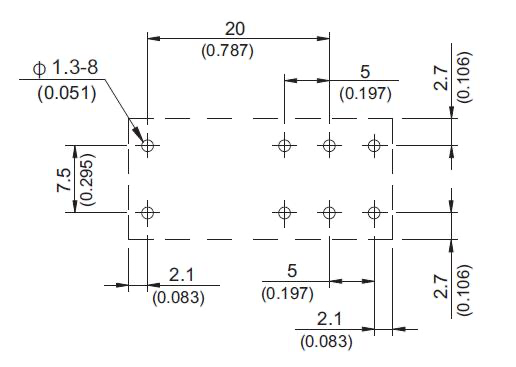

Song Chuan Series 793 Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
793 Series Datesheet	PDF	681 KB
