KSK-1E66 Series Reed Switch

The KSK-1E66 is a high performance miniature reed switch featuring latching or bistable reed switch contacts. Glass length of 14.0mm and diameter of 2.2mm. This reed switch has a rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

Applications

Automotive, general purpose, industrial

Images

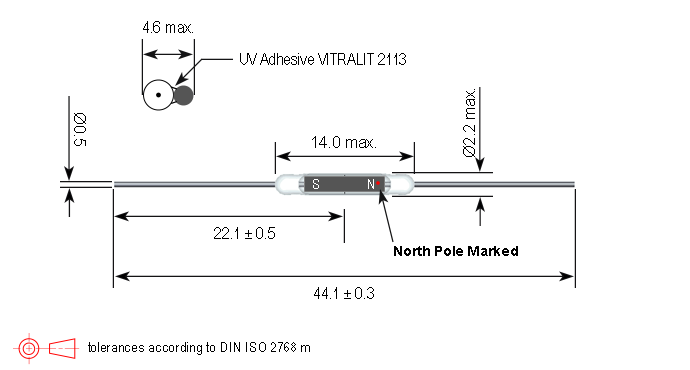

KSK-1E66 Series Reed Switch
Specifications



Overall Length mm (inches) 44.1 (1.736)
Glass Length Max. mm (inches) 14.0 (0.551)
Glass Dia. Max. mm (inches) 2.20 (0.086)
Lead Dia. mm (inches) 0.5 (0.019)
Contact Form 1E Latching
Pull-In Range 10-40 AT
Rated Power Max. 10W/200VDC/0.5 Amp DC
Documents and Downloads



Document File Type File Size Download
KSK-1E66 Datasheeet PDF 347 KB
