KSK-1A31 Series Reed Switch

The KSK-1A31 is a mercury wetted miniature high power reed switch with high current capability. Glass length of 11.0mm and diameter of 2.5mm. Rated power 50 W, Switching voltage 500 VDC, Switching current 2 Amp DC

Applications

Industrial, high power/voltage, test and measurement (ATE)

Images



KSK-1A31 Series Reed Switch
Specifications

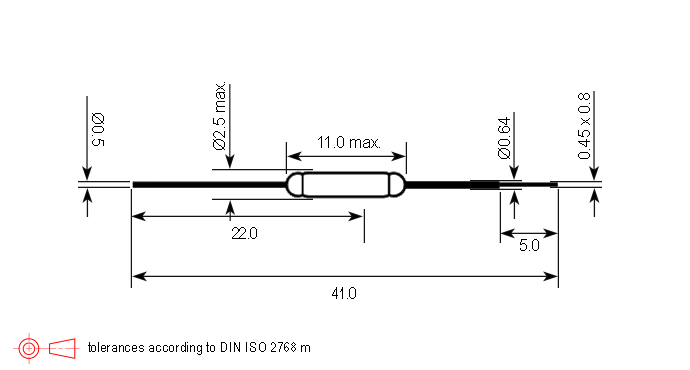

Overall Length mm (inches) 41.0 (1.614)
Glass Length Max. mm (inches) 11.0 (0.433)
Glass Dia. Max. mm (inches) 2.50 (0.098)
Lead Dia. mm (inches) 0.64 (0.025)
Contact Form 1A (SPST) Normally Open (N.O.)
Pull-In Range 20-45 AT
Rated Power Max. 50W/500VDC/2 Amp DC
