Product No.
Media ejection
Mounting system
Features
SCHA1A0101
Push-push type
Standard mount
Without switch

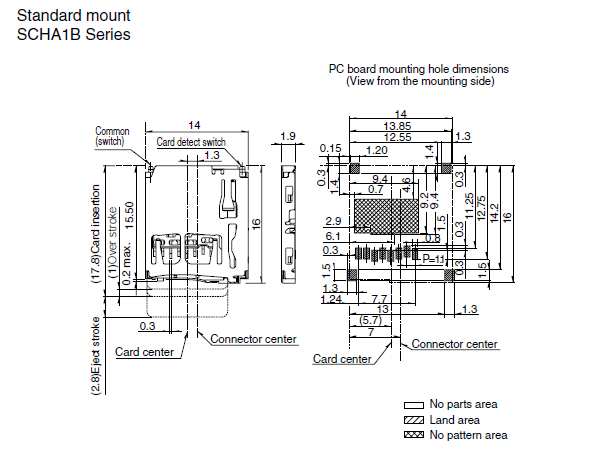

SCHA1B0100
With switch

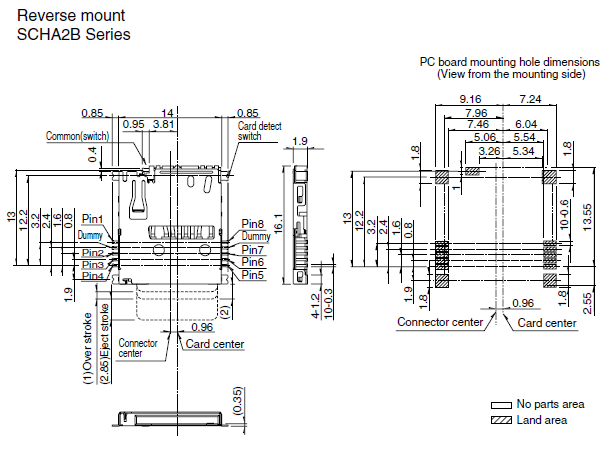

SCHA2B0300
Reverse mount
SCHB1A0201
Manual couple/decouple type
Standard mount
 nge cover type
SCHC1A0200
-----------------------
Adapter
Structure
Specifications
Applicable media
microSD™Card
Dimensions (W×D×H)
14×16×1.9mm (Standard mount)
14×16.1×1.9mm (Reverse mount)
Mounting method
Surface mounting type
Mounting system
Standard mount / Reverse mount
Media ejection structure
Push-push type


Performance
 Specifications
Operating temperature range
－20°C to ＋70°C
Voltage proof
500V AC 1 minute
Insulation resistance (Initial)
1,000MΩ min.
Contact resistance (Initial)
100mΩ max. (Detection switch 500mΩ max.)
Mating and unmating cycles
5,000 cycles
