Industry's highest azimuth accuracy, and lowest-ever current consumption.



• Output noise reduced approx. 30% compared to the earlier model by optimizing the high-precision magnetic element, enabling higher azimuth accuracy and reduced calibration time.
• ±1.2mT high-precision measurement range improves set layout flexibility within magnetic field environments.
• Proprietary software enables combining of electronic compass functions and 3-axis angular velocity detection in a single device.
• Compatible with I^2C and SPI interfaces.

• Electronic compasses (smartphones, digital still cameras, etc.)
• Motion control (game controllers, head-mounted displays, etc.)

Items	Specifications

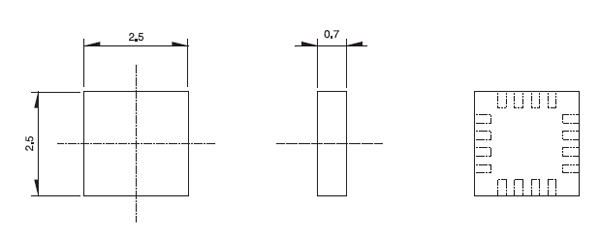

Dimensions ( W x D x H )	2.5 x 2.5 x 0.7mm
Output resolution	0.3μT / LSB
Measurement range	±1.2mT
Current consumption	200μA max.
Drive voltage ( Analog; AVDD )	2.4 to 3.6V
Drive voltage ( Digital; DVDD ）	1.7 to AVDD
Interface	I^2C / SPI
Operating temperature range	-30℃ to +85℃



Document	File Type	File Size	Download
Datasheet	PDF	123 KB
