Compact size with low=profile (85% volume reduction).



• Compact external dimensions with low profile: 23 × 25 × 3.1mm
• Low power consumption, high sensitivity and high noise immunity
• Enhanced resistance to various types of noise
• For ISDB‒T

• Car TVs and navigation systems

Items	Specifications

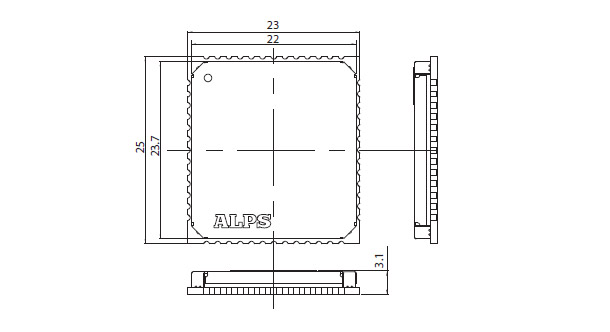

Dimensions (W x D x H)	23 x 25 x 3.1 mm
Receiving channels	UHF : 13-62CH
Output	13-segment / 1-segment (ISDB-T)
Control I/F	TS serial (full-seg TS x2)
Sensitivity	-89.5dBm typ.
Power Supply	1.55W



Document	File Type	File Size	Download
Datasheet	PDF	845 KB
