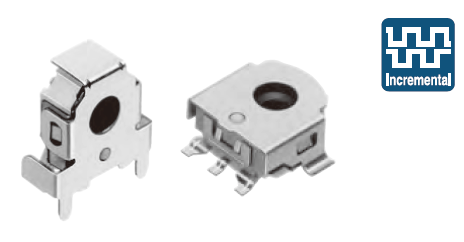

5mm Size Hollow Shaft Type EC05E Series
AlpsAlpine Incremental Encoder EC05E Series

Compact type employing Alps' DRUMCODE™ technology.



Applications
  • Headsets, wearables
  • Notebooks, peripherals
  • Robots, drones
  • Home handheld consoles
  • Virtual/augmented reality
  • Healthcare equipment
  • Nursing care equipment
  • Analysis, test equipment



Typical Specifications

Rating Each lead　 0.55mA 5.5V DC max. Commom lead　1.1mA 5.5V DC max.
Operating life 100,000 cycles
Operating temperature range −30℃ to ＋85℃

Downloads

Document File Type File Size Download
EC05E Series Datasheet PDF 911 KB
