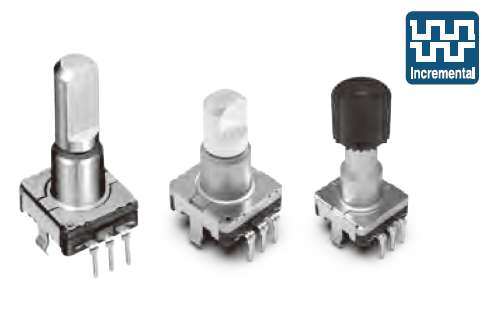

11mm Size Metal Shaft Type EC11 Series
AlpsAlpine Incremental Encoder EC11 Series

Compact and highly reliable type available in many varieties.



Applications
  • Industrial equipment
  • Converters
  • Major home appliances
  • Visual
  • Audio
  • Navigation/audio systems, HVAC



Typical Specifications

Output signal Two phase of A, B Self-return switch (EC111)
Rating 10mA 5V DC
Operating life 15,000 cycles
Operating temperature range −40℃ to ＋85℃

Downloads

Document File Type File Size Download
EC11 Series Datasheet PDF 1.7 MB
