Typical Specifications

Rating(max.)(/ min.) (Resistive load) 0.1A 12V DC / 50μA 5V DC
Contact resistance (Initial / After operating life) 500mΩ max. / 1Ω max.
Operating force 1±0.5N
Operating life Without load 300,000cycles
With load 300,000cycles（ 0.1A 12V DC）

Downloads

Document File Type File Size Download

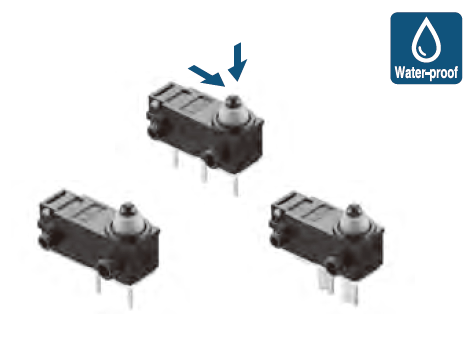

SPVQ7 Series Datasheet PDF 997 KB
