0.7mm(H), 1.4mm-travel Surface Mount Type SSAJ Series

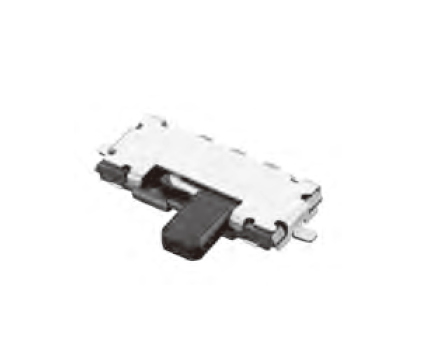

AlpsAlpine SSAJ Series Slide Switch

Compact type of body height 0.7mm.



Applications
  • Smartphones, tablets
  • Headsets, wearables
  • Notebooks, peripherals
  • Robots, drones
  • Industrial equipment
  • Converters
  • Home handheld consoles
  • Virtual/augmented reality
  • Audio
  • Cameras
  • Healthcare equipment
  • Nursing care equipment
  • Analysis, test equipment



Typical Specifications

Rating（max.）/（ min.）（Resistive load） 10mA 5V DC / 50μA 3V DC
Contact resistance （Initial / After operating life） 300mΩ max. / 500mΩ max.
Operating force 1.5±1N
Operating life Without Load 10,000 cycles
With Load 10,000 cycles（ 10mA 5V DC）

Downloads

Document File Type File Size Download
SSAJ Series Datasheet PDF 1.0 MB
