Macromatic offers Single or Dual Channel Seal Leakage Relays and Over Temperature & Seal Leakage Relays. Seal Leakage Relays monitor the shaft seals of submersible pumps for leakage. Over Temperature & Seal Leakage Relays protect submersible pump motors against damage from both over temperature and seal leakage.

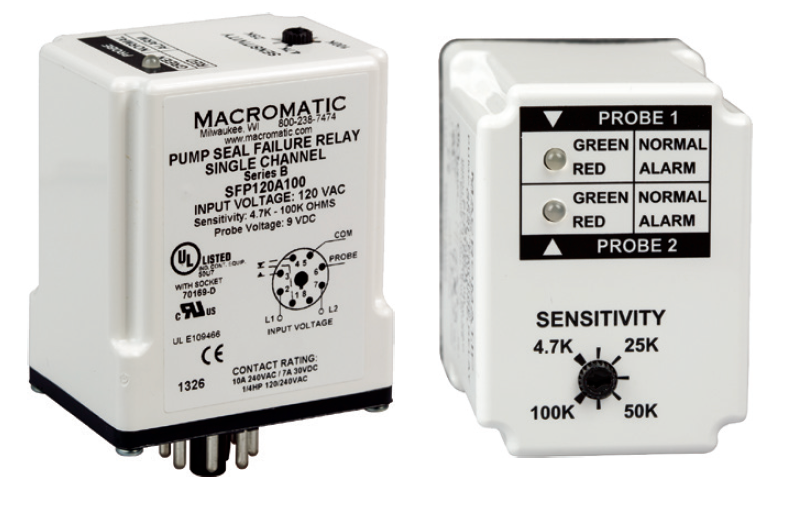

SFP Series Seal Leakage Relays are designed to monitor the shaft seals of submersible pumps for leakage. LED status indication and low-profile sensitivity knob are on top for easy setup and troubleshooting. These products utilize a plug-in enclosure for panel or DIN-rail mounting with a socket.
SFF Series Seal Leakage Relays are designed to monitor the shaft seals of submersible pumps for leakage. These products utilize a flange-enclosure designed to be mountedon an inner door and used with back-mounted sockets. Everything needed for setup, use and troubleshooting is on the top of the unit: LED status indication and low-profile sensitivity adjustment knob.
Macromatic TCP Series products protect submersible pump motors against damage from both over temperature and seal leakage. The TCP Series products come with automatic reset for over temperature (for units with a choice of either automatic or manual reset in a flange-mounted enclosure, see the TCF Series products). These products utilize an industry-standard plug-in enclosure for panel or DIN-rail mounting.
Macromatic TCF Series products protect submersible pumps against damage from both over temperature and seal leakage. This flexible unit can be connected in one of three ways to monitor for seal leakage: one probe to ground, two probes to ground and probe to probe. These products come with a switch to select either automatic reset or manual reset for an over temperature condition (for automatic reset only in a standard plug-in enclosure, see the TCP Series products).
Macromatic TCF-A Series products monitor for over temperature and seal leakage on submersible pumps with 3-wire sensing (resistive seal, N.C. over temp). Product can be installed in place of existing Flygt MiniCAS with minimal rewiring. These units come with a switch to select either automatic reset or manual reset for an over temperature condition.
Macromatic TCF-E Series products monitor for over temperature and seal leakage on submersible pumps using a float type leakage detector. These products come with a switch to select either automatic reset or manual reset for an over temperature condition.
Macromatic TCF-F Series products monitor for over temperature and seal leakage on Flygt submersible pumps using either FLS or CLS leakage sensors (MINI-CAS). These units come with a switch to select either automatic reset or manual reset for an over temperature condition. The  ange-enclosure is designed to be mounted on an inner door and used with a back-mounted socket (included). Everything needed for setup, use and troubleshooting is on the top of the unit: status LEDs...
