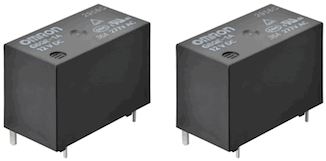

Miniature and Low Height Single-pole Power Relay with 36A Switching Current



• High switching current of 36 A@250 VAC and 10,000 operations, 30 A@250 VAC and 100,000 operations in a miniature package
• Achieved 10-kV impulse withstand voltage (between coil and contacts)
• Power consumption reduced to 12% compared with rated coil consumption by lowering the applied voltage to the coil after applying nominal voltage for 100 ms relay operation (Reduced to 35% from rated coil voltage)
• Conforms to cULus, EN and CQC



Downloads

Document	File Type	File Size	Download
G6QE Series Datasheet	PDF	960 KB
