Ratings / Characteristics

Rating (resistive load) 25 mA at 24 VDC, 10 μA (minimum current) at 3.5 VDC
Ambient operating temperature –25 to +80°C 60%RH max. (with no icing or condensation)
Ambient operating humidity 35% to 95% (at +5 to +35℃)
Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ max.
Dielectric strength Between terminals 250 VAC for 1 min
Vibration resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction 300m/s2min.
Durability Electrical 5,000 steps min.
Washing Not Possible
Degree of protection IEC IP60
Operating force 1.96 × 10−2 N·m {2 gf·m} max.

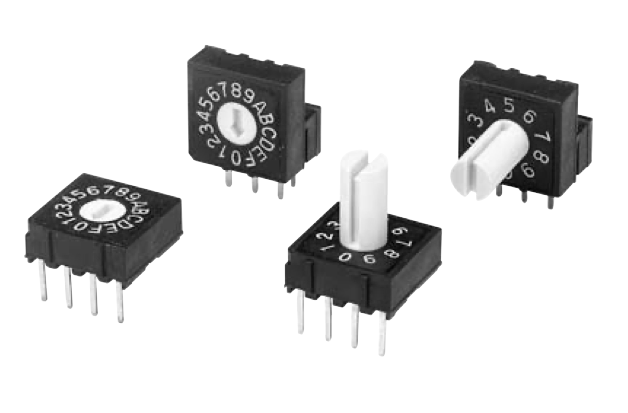

Weight Top-actuated: Approx. 0.6 g
Side-actuated: Approx. 0.8 g
(Add 0.13 g for the extended-actuator type of each model.)
