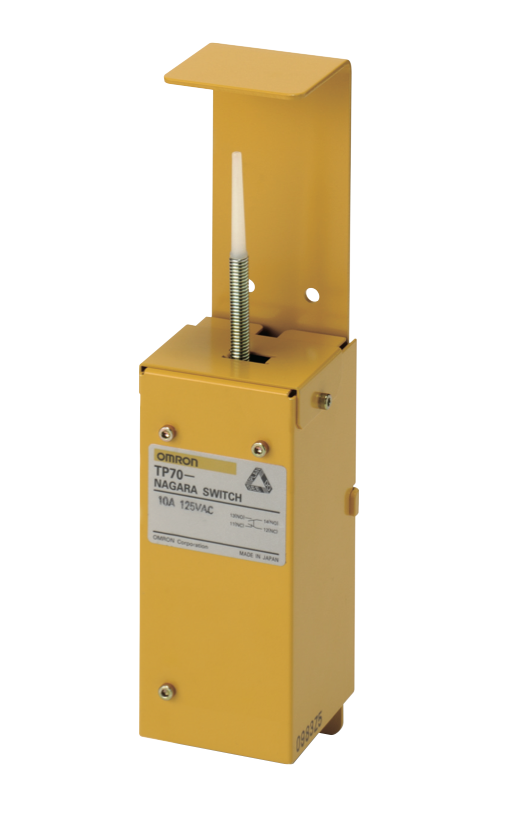

Ratings / Characteristics

Ratings

Rated voltage Carry current Current (A) Volt-amperes (V)
Make Break Make Break
120 VAC
240 VAC		 10 A 60
30		 6
3		 7,200 720
125 VDC
250 VDC		 2.5 A 0.55
0.27		 0.55
0.27		 69 69

Characteristics

Degree of protection IP65
Vibration resistance Malfunction: 10 to 55 Hz, 0.65-mm single amplitude, 100 m/s2 max.
Shock
resistance		 Destruction 1,000 m/s2 max.
Malfunction 20 m/s2 max.
Operating
environment		 Ambient operating temperature -10 ° C to +70 ° C
Ambient operating humidity 35% to 95%RH
Built-in
switch
specifications		 Switch model D4N-2187
Allowable operating speed 1 mm/s to 0.5 m/s
Allowable
operating
frequency		 Mechanical 60 operations/min
Electrical 30 operations/min (with resistive load)
Durability *2 Mechanical 1,000,000 operations min.
Electrical 200,000 operations min. (for a resistive load of 10 A at 125 VAC)
Contact type SPST-NO+SPST-NC
Terminal type Screw terminals
Emergency-
stop switch
specification		 Switch model A165E-M-02
Operating method Slow action, Direct-opening mechanism
Operating functions Push to lock, turn to reset
Contact is opened by pushing in switch and closed by returning switch to original position.
Contact type DPST-NC
Operating part Size: 40 dia. Color: red, non-illuminated
Terminal type Soldered terminals

Note: 1. The values in the above table are the initial values.
2. For more details on specifications, refer to individual specification sheets for the relevant models.
*1. The specification given for the degree of protection is for the built-in switch (D4N-2187) and does not apply to the casing for the whole product.
*2. The durability values shown above are for operation at an ambient temperature of 5°C to 35°C, an ambient humidity of 40% to 70%RH, with an operating stroke of 30 mm at a point 20 mm away from the end of the actuator. Contact your OMRON representative for details on other operating conditions.

Downloads

Document File Type File Size Download
TP70 Series Datasheet PDF 841 KB
