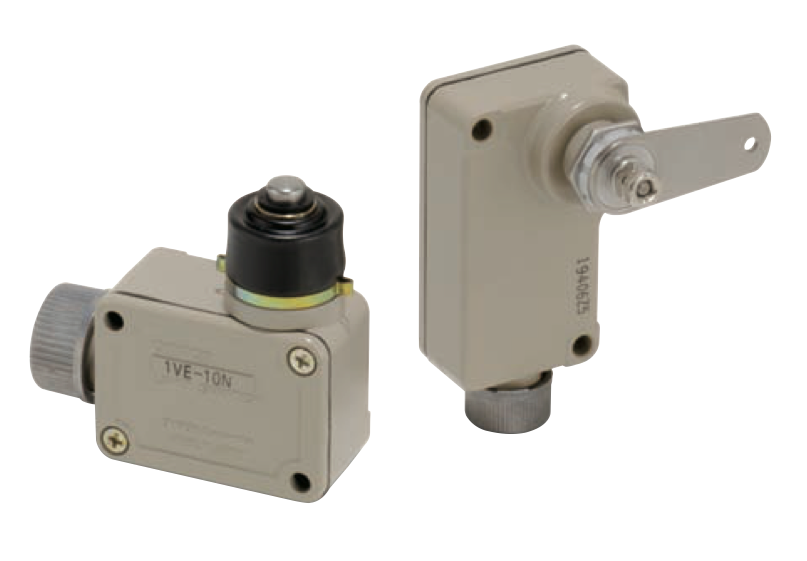

Ratings / Characteristics

Ratings

Rated
voltage
(V)		 Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC
250 VAC		 10
10		 2
1.5		 10
10		 3
2
8 DC
14
30
125
250		 10
10
6
0.6
0.3		 2
3
3
0.1
0.05		 6
6
4
0.6
0.3		 6
6
4
0.1
0.05

Note: 1. The above values are continuous currents.
2. Inductive loads have a power factor of 0.4 or higher (AC) or a time constant of 7 ms or lower (DC).
3. Lamp loads have an inrush current of 10 times the steady-state current.
4. Motor loads have an inrush current of 6 times the steady-state current

Characteristics

Degree of protection IP60
Durability
*		 Mechanical 1,500,000 operations min.
Electrical 300,000 operations min. (10 A at 250 VAC, resistive load)
Operating speed Sealed plunger: 0.1 mm/s to 0.5 m/s
Cam arm: 0.5 mm/s to 0.5 m/s
Cam roller arm: 0.5 mm/s to 0.5 m/s
Allowable Operating
frequency		 Mechanical 120 operations/min
Electrical 60 operations/min.
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 15 mΩ max. (initial value)
Dielectric
strength		 Between terminals of the same
polarity		 1,000 VAC, 50/60 Hz for 1 min
Between each terminal and non-
current-carrying metal part		 1,500 VAC, 50/60 Hz for 1 min
Vibration
resistance		 Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock
resistanc		 Destruction 1,000 m/s2 max.
Malfunction 300 m/s2 max.
Ambient operating temperature -10°C to 80°C (with no icing)
Ambient operating humidity 35% to 95%RH
Weight Approx. 120 to 170 g

Note: The above values are initial values.
* The values are calculated at an operating temperature of 5°C to 35°C and an operating humidity of 40% to 70%. Contact your OMRON sales representative for more detailed information on other operating environments.
