Ratings / Characteristics

Ratings

  Rated load Non-inductive
Power Contact Terminal 125 VAC 16 A
250 VAC 10 A
Signal Contact Terminal 5 VDC 0.2 A

Note: 1. The above ratings were tested under the following conditions:
(1) Ambient temperature : 20±2°C
(2) Ambient humidity :65±5％
(3) Switching frequency :7times/min

Characteristics

Permissible operating speed Mechanical Switch operation: 20 times/min max, Coil operation: 7 times/min max
Electrical 7 times/min max
Insulation resistance 100MΩmin
(at 500 VDC with insulation tester)
Contact resistance
(initial value)		 Power contact terminal 100 mΩ max (6 VDC to 8 V, 1 A Voltage drop method)
Signal contact terminal 100 mΩ max (6 VDC to 8 V, 0.1 A Voltage drop method)
Dielectric strength Between terminals of the same polarity 2,000 VAC 50/60 Hz 1 min
Between terminals of the different polarity 2,000 VAC 50/60 Hz 1 min
Between each terminals of the switch and terminals of coil 4,000 VAC 50/60 Hz 1 min
Between each terminals of switch and ground 4,000 VAC 50/60 Hz 1 min
Vibration resistance Malfunction 10 to 55 Hz 1.5 mm double amplitude (Malfunction 1 ms max)
Shock resistance Malfunction 300m/s2 min (Malfunction 1 ms max)
Destruction 1000 m/s2 max
Ambient operating temperature −10 to +55 °C (with no icing or condensation, 60 % RH max)
Ambient operating humidity 90 % RH max (+5 to 35 °C with no icing or condensation)
Durability Mechanical Switch operation: 30,000 operations min, Coil operation: 10,000 operations min
Electrical Switch operation: 10,000 operations min, Coil operation: 10,000 operations min
Degree of protection IEC IP40
Contact release time ** 100 ms max

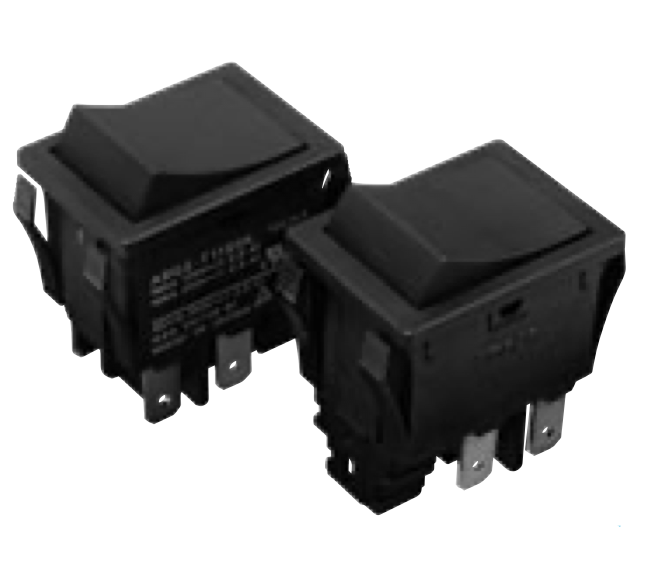

Weight A8GS-TxxxxK: Around 15 g

Note: 1. Above specification values are initial values.
* For the testing condition in individual specification, contact your OMRON sales representative.
** Time from voltage applied to reset coil to actual contacts opening.
