102 Automotive 20A low profile PCB Relay

Song Chuan Automotive Relay - 102 Series

Compact size miniature PCB relays
Special design for high performance motor control of wipers, sunroof, and window lift control.
High rating 20A with maximum switching current up to 30A.
High temperature endurance up to 125.
IR-Reflow process compatible (special version).
Complies with RoHS-Directive 2011/65/EU, and ELV-Directive 2000/53/EC.

Part Series:	102
Contact Configuration	1A - 1C
Contact Rating(Resistive Load)	NO: 20A 14VDC; NC: 10A 14VDC
Coil Voltage	DC: 6 - 9 - 12 - 24V
Power Consumption	DC: 0.64W

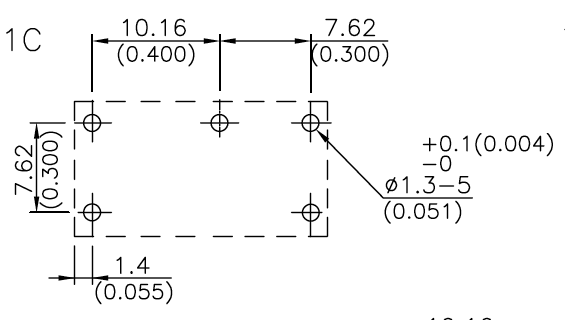

Song Chuan Series 102 Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
102 Series Datesheet	PDF	535 KB
